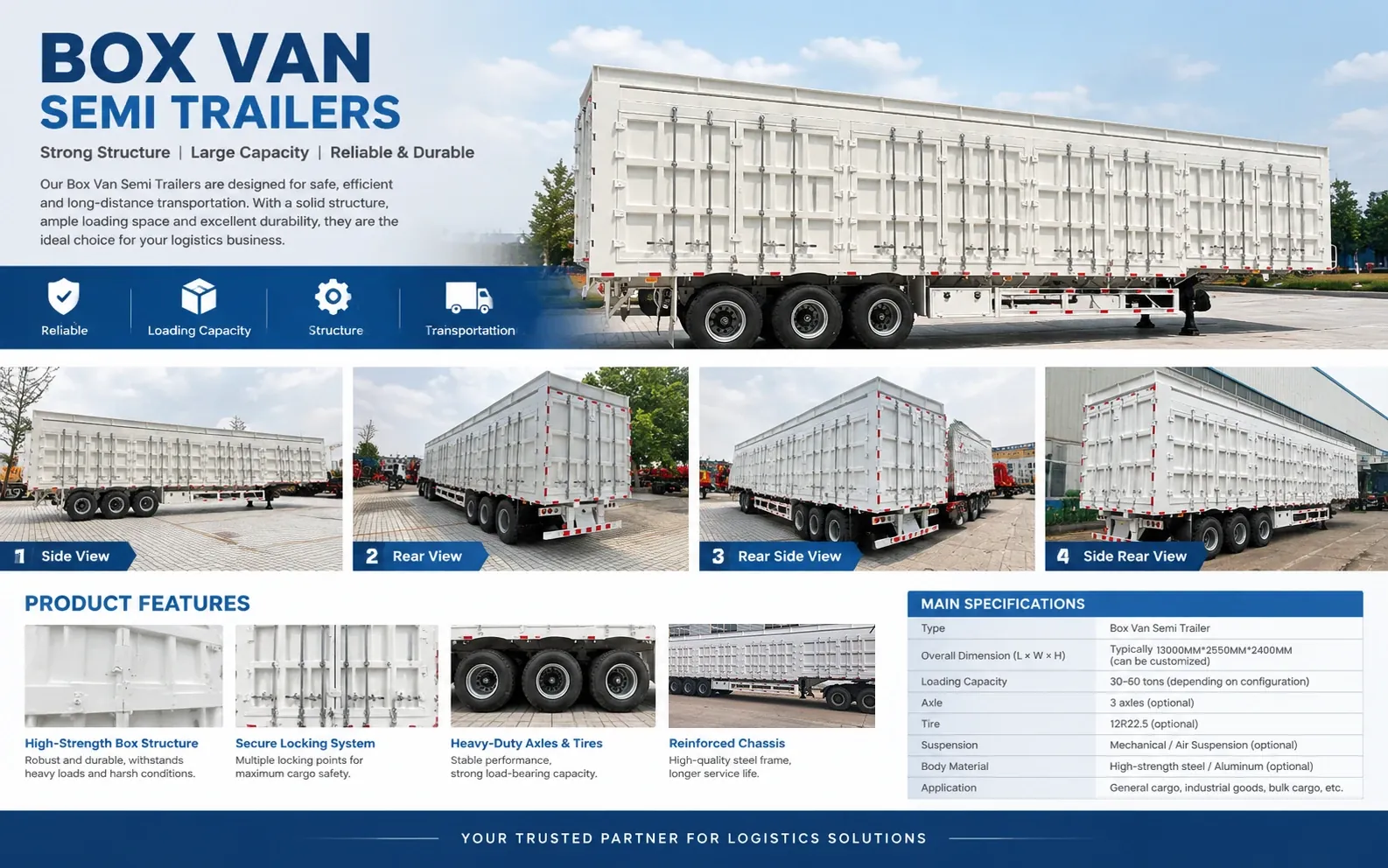

Box Van Semi Trailer
0.9mm box plate | Multi-choice doors | Curtain style option
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction

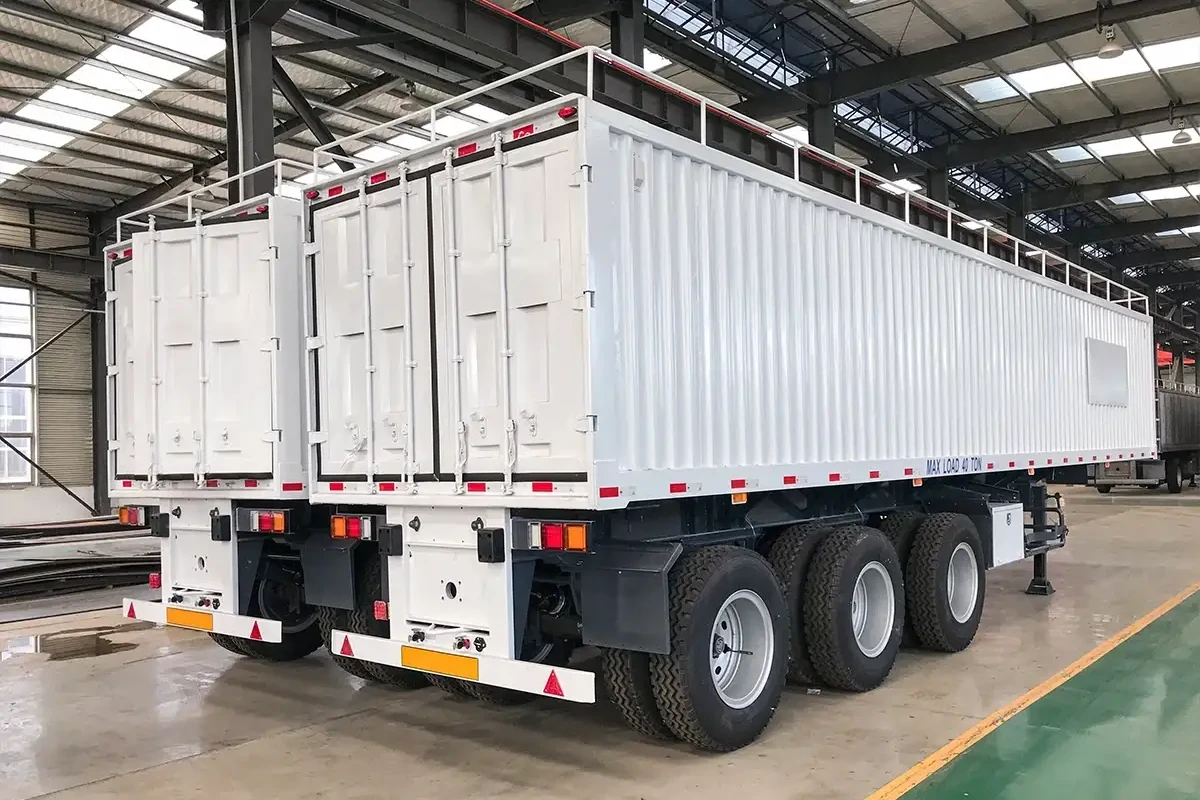

The Vehicle Master box van semi trailer has strong strength, small weight, rational structure and beautiful appearance. The frame uses a no-vertical-beam, through-going beam structure; the longitudinal beam is welded by automatic submerged arc welding and shot blasted.
Three box types are available: normal box van, side blind type and wing opening type. The curtain style box trailer is also available. Door positions and opening styles are multi-choice.
Applications
- Commercial cargo – palletized FMCG and retail distribution.
- Food and beverage – with insulation option.
- Express and parcel – multiple door configurations for fast unloading.
- Coal and mineral (covered) – dust-proof bulk hauling.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Commercial cargo loading |
| Loading Capacity | 30 – 60 Tons (3 axles); 20 – 50 Tons (2 axles); 60 – 100 Tons (4 axles) |
| Dimension (L×W×H) | 13000 × 2550 × 2400 mm |
| BOX STRUCTURE | |
| Box Plate Thickness | 0.9 mm |
| Box Type | Normal van / side blind / wing opening |
| Door Position | Multi-choice (rear / side) |
| Door Opening Style | Multi-choice |
| Tandem Style | Available |
| Curtain Style Box Trailer | Available |
| Insulation | Optional |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | Q345 / T700 |
| Main Beam Height | 500 mm |
| Upper / Middle / Lower Plate | 14 mm / 8 mm / 16 mm |

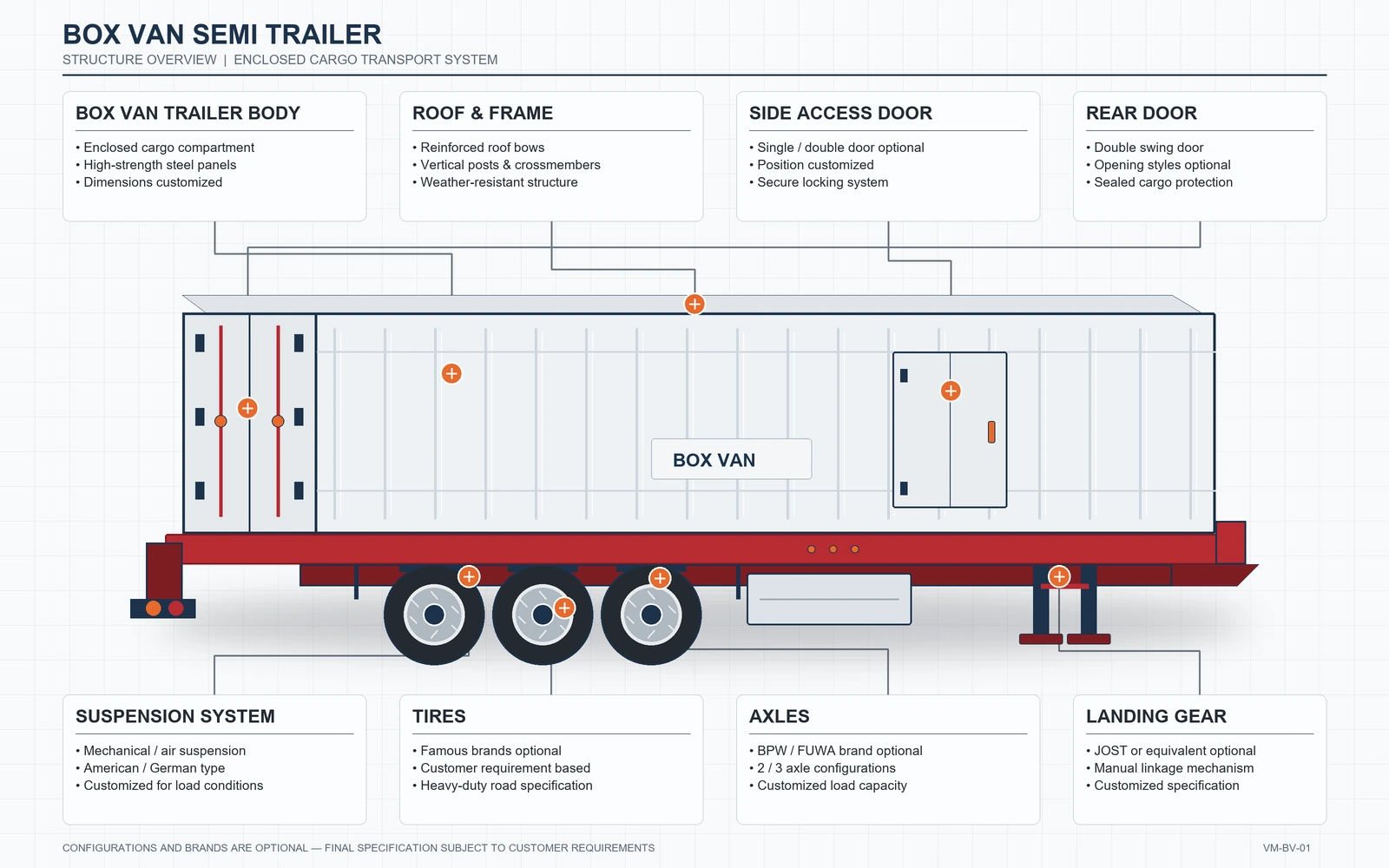

| Frame | No-vertical-beam, through-going structure |
| AXLE & SUSPENSION | |
| Axle | 3 Axles × 13/16T, FUWA / BPW |
| Suspension | Mechanical / Airbag |
| Leaf Spring | 90mm × 13/16mm × 10 |
| WHEEL & TIRE & ACCESSORIES | |
| Tire | 11.00R20 / 12R22.5 × 12 |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.0 / 8.0 × 12 pieces, Steel / Aluminum |

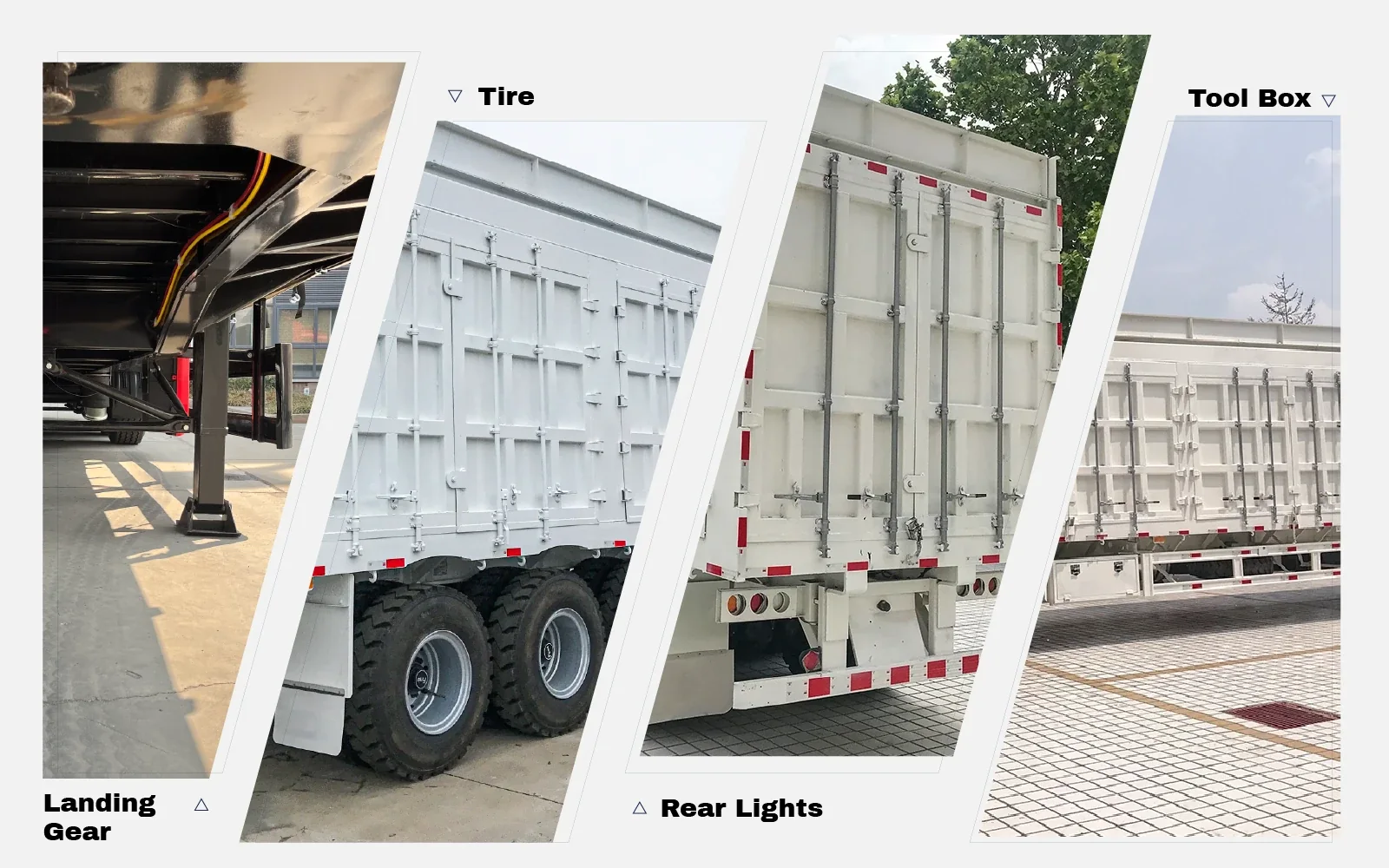

| King Pin | #50 (2″) / #90 (3.5″), JOST/Other Brand |
| Landing Gear | JOST 28T two-speed |
| Tool Box | Steel / Aluminum |
Dimensions
Features & Benefits
- 0.9 mm box plate with profiled ribs – light, rigid, rain-tight.
- Multi-choice doors – rear swing, side swing, roller shutters.
- Insulation option – food and beverage duty.
- Wing opening type is one of the three box types; the curtain style box trailer is also available.
- Electrophoresis Painting is applied so resistance and painting effect can last for over 10 years.
- 42 tough ribs design ensures the safety and carrying capacity.
- Anti tire abrasion suspension system is specially designed to prevent tire offset after loading.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | Normal Box Van (This Page) |
|---|---|
| Loading access | Rear + side doors |
| Loading speed | Standard |
| Weather protection | Full |
| Best for | General distribution |
Inquire Normal Box Van (This Page) »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
About 80 CBM with standard 13,000 × 2,550 × 2,400 mm box. Higher boxes available where regulations allow.
Insulation is an option; full refrigeration units (reefer) can be fitted on request – tell us your temperature range.
Rear swing doors + one side door; express operators prefer roller shutters for curb-side unloading.
