30CBM Cement Tanker Trailer
Compact bulk cement supply | 30 CBM (30-70 CBM customizable), Bohai 12CBM/min compressor
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction

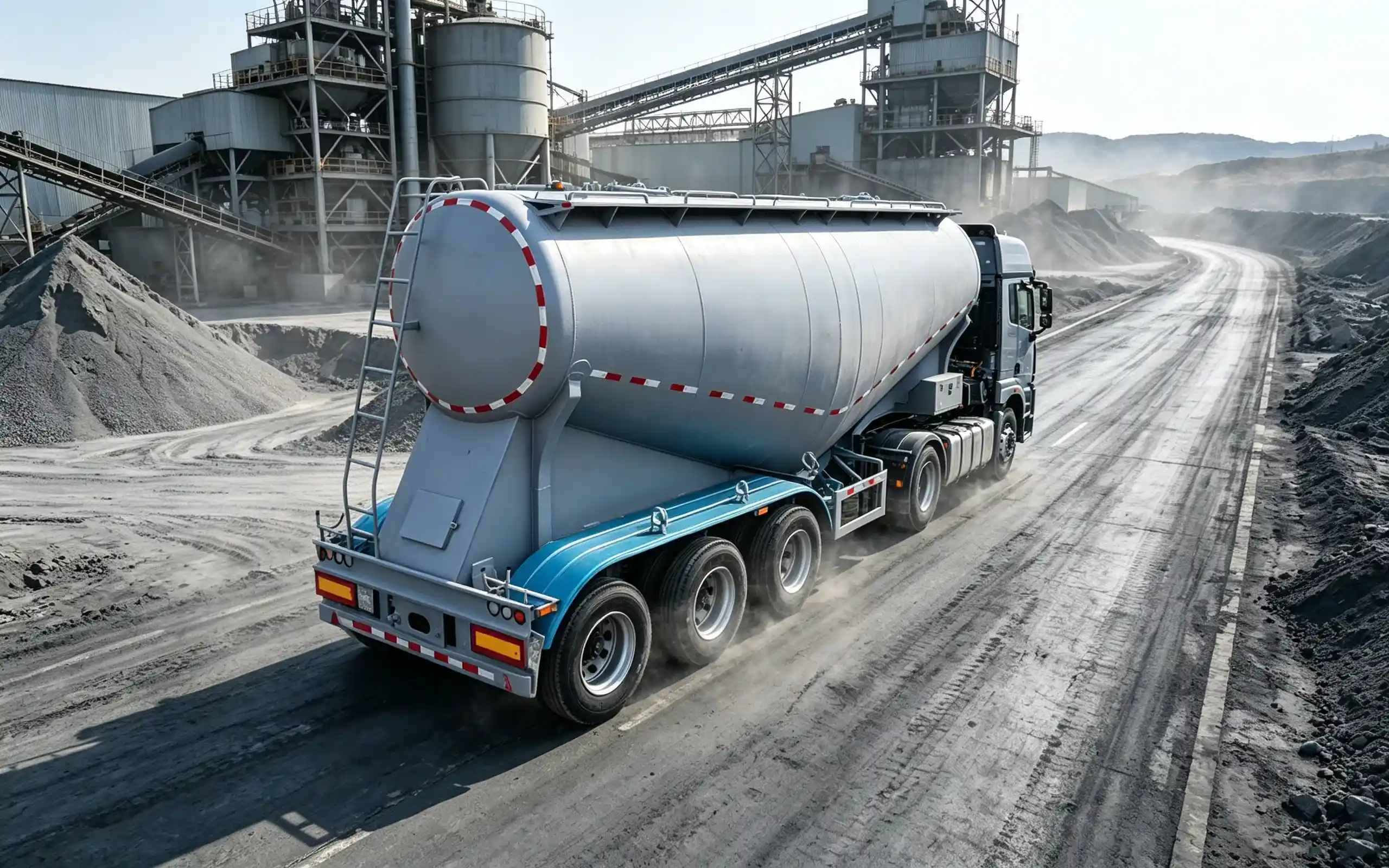

The 30CBM cement tanker trailer is the compact bulk powder solution for small batching plants and construction sites, with a short wheelbase for tight site access, and pneumatic discharge straight into the silo.
A Bohai 12 CBM/min compressor with Weichai engine powers pneumatic unloading. The wide area fluidized bed with a large angle tank makes unloading faster with less residue. Choose 2 axles where road rules allow, or 3 axles for larger tank volume.
Applications
- Bulk cement – cement plants to batching stations.
- Flour and grain powder – food-grade configurations.
- Fly ash, lime powder – power plant and construction duty.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Bulk Cement/Grain/Powder Loading |
| Tank Volume | 30 CBM (30-70 CBM customizable) |
| Dimension (L×W×H) | 13000 × 2550 × 3900 mm |
| Painting | Polyurethane combination painting |
| TANK STRUCTURE | |
| Tank Shape | V Shape / W Shape |
| Material | Carbon Steel / Aluminum / Stainless Steel |
| Compartment | 1 / 2 compartment |
| Tanker Dish End Thickness | 5 mm / 6 mm |
| Tanker Body Thickness | 4 mm / 5 mm |
| Fluidized Bed | Wide area fluidized bed with a large angle tank so unloading is faster with less residue. |
| POWER SYSTEM | |
| Engine | Weichai 4102 |
| Air Compressor | Bohai 12 CBM/min |
| Power Type | Diesel / Electric optional |
| AXLE & SUSPENSION | |
| Axle | 2 / 3 × 13T |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical |
| Leaf Spring | 90mm × 13mm / 90mm × 16mm, 10 pcs |
| WHEEL & TIRE & ACCESSORIES | |
| Tire | 12R22.5 (8/12 pieces), brand optional |
| Rim | 9.00×22.5, Steel / Aluminum |
| King Pin | 2″ / 3.5″ JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Warranty | 1 year on main parts |

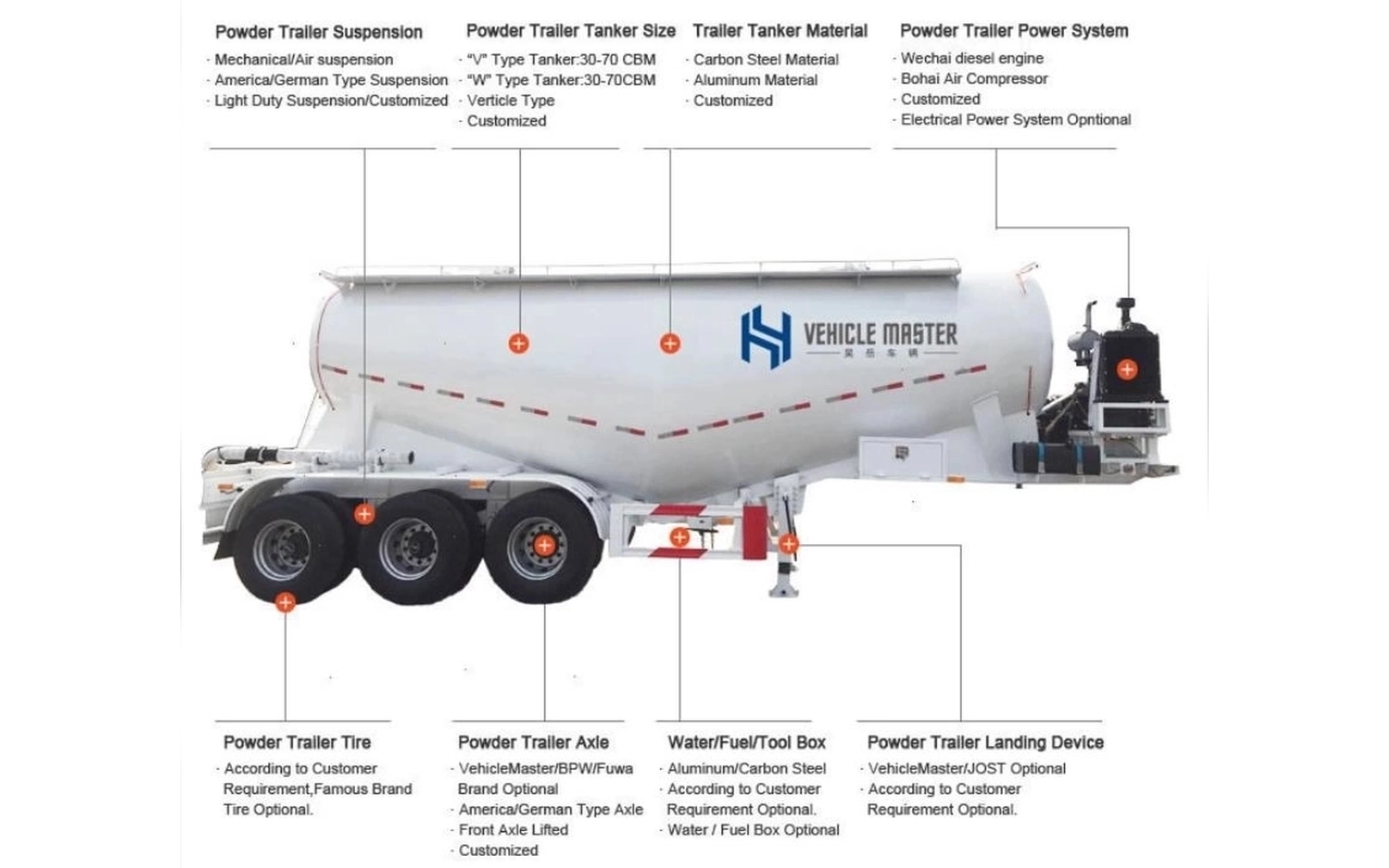

Dimensions
Features & Benefits
- No guide plate structure – light weight, low residue.
- Wide area fluidized bed – faster unloading with less residue than conventional tanks.
- Linear intake pipe arrangement – smooth air intake, efficient unloading.
- Diesel or electric power – choose by your site infrastructure.
- Polyurethane combination painting – high oxidation resistance, stronger adhesion.
- X-Ray Room Examination ensures safety of dangerous goods transportation.
- 42 tough ribs design ensures the safety and carrying capacity.

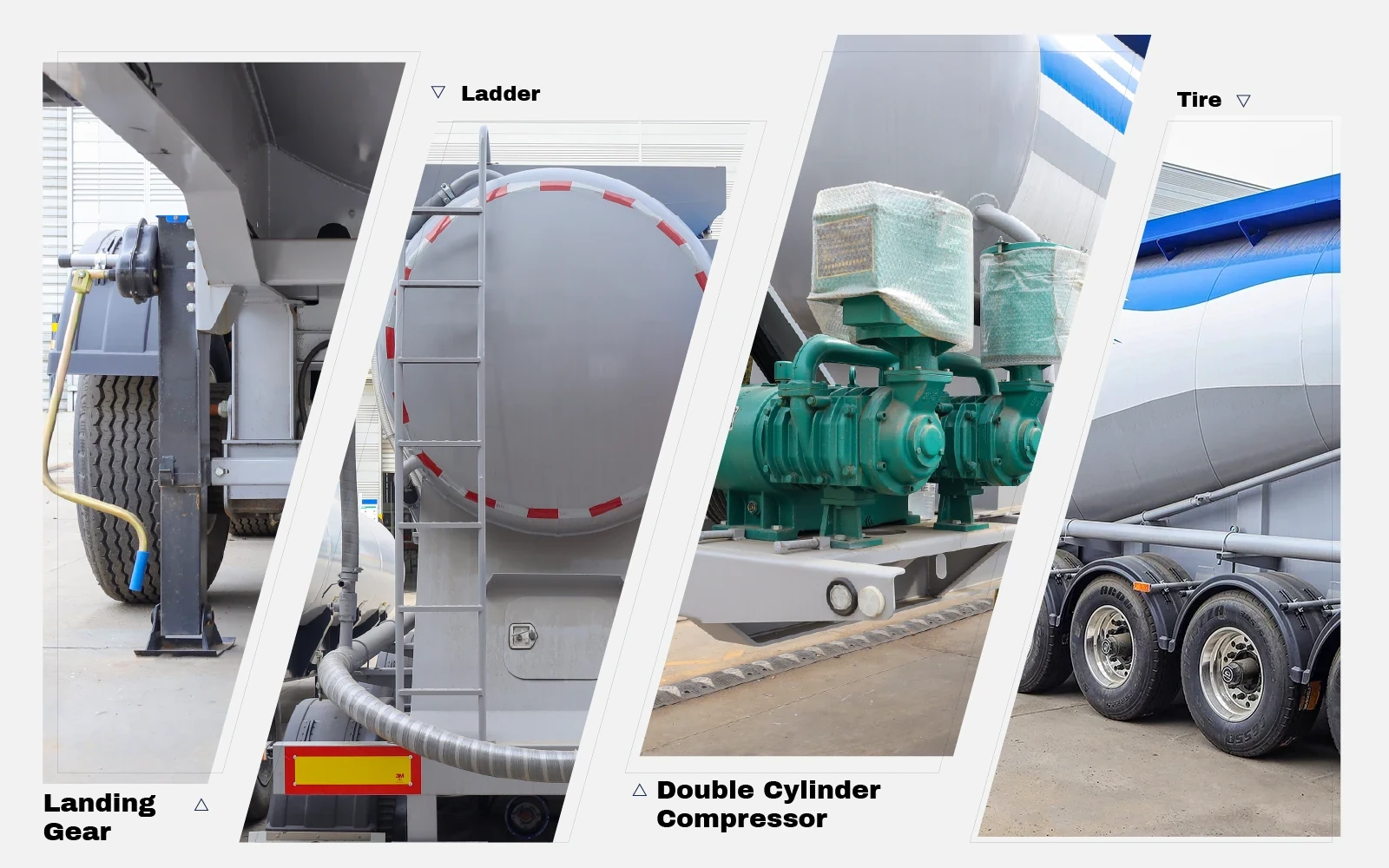

Manufacturing & Quality
- Advanced TIG welding robot, 100% passing rate with X-Ray inspection.
- Ladders and roof walkways with anti-slip design are also included.
- Head wave-proof board is expansion structure with high strength.
- Material thickness strictly follows GB standard.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content of 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison

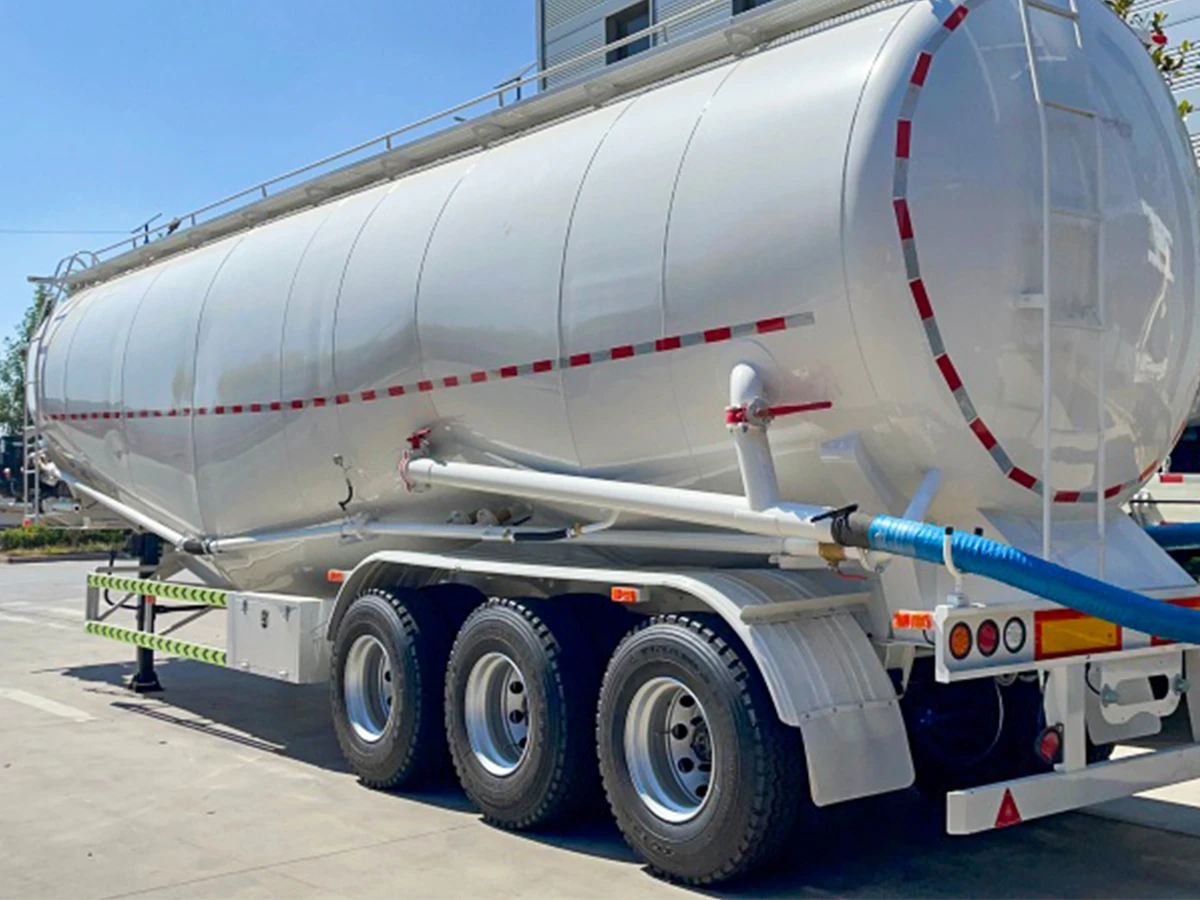

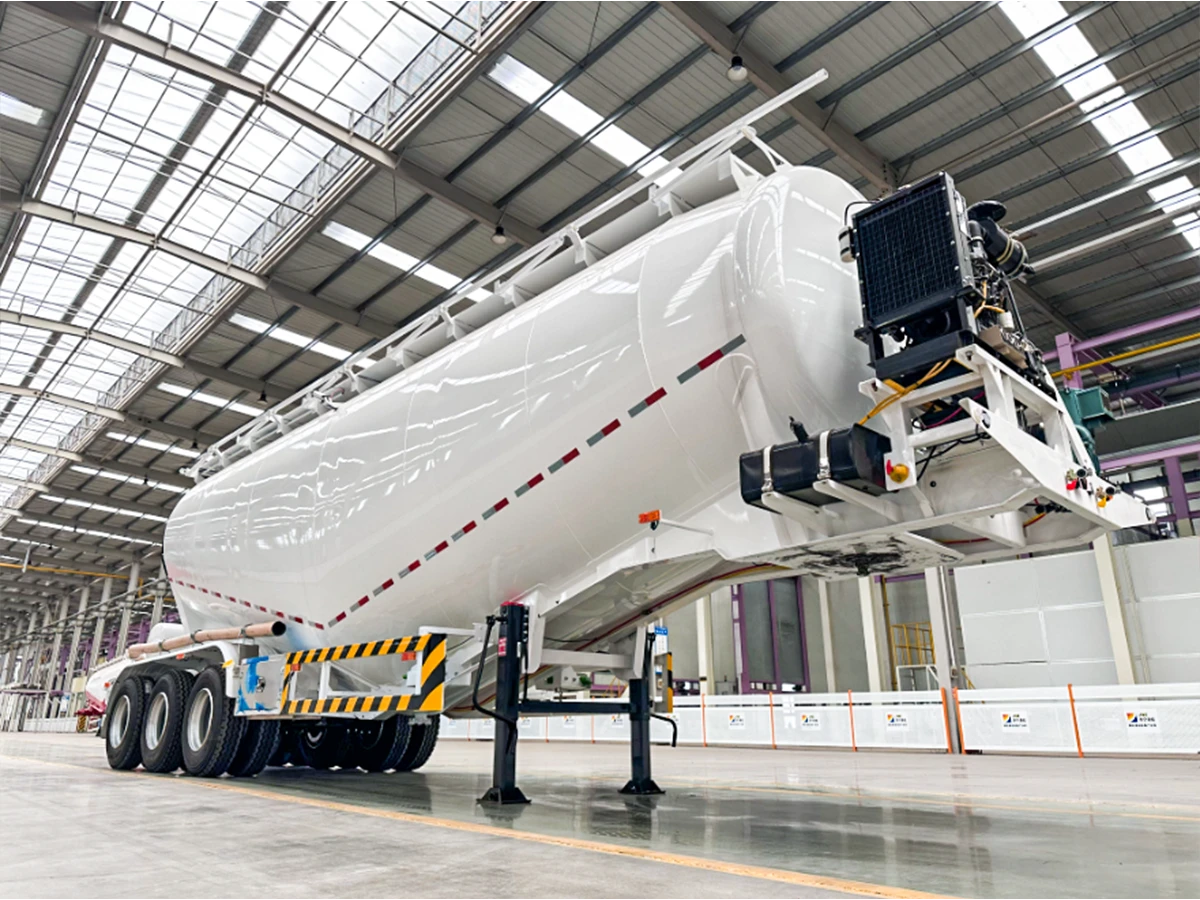

| Item | 30CBM (This Page) | 35CBM | 45CBM | 60-70CBM V Shape |
|---|---|---|---|---|
| Axles | 2 / 3 × 13T | 3 × 13T | 3 × 13/16T | 3 / 4 × 16T |
| Tank Shape | V / W | V / W | V / W | V Shape |
| Best for | Small batching plants | Medium supply | Standard depot supply | Long-haul bulk |
| Engine | Weichai 4102 | Weichai 4102 | Weichai 4102 | Weichai 4102 |
Inquire 30CBM (This Page) » Inquire 35CBM » Inquire 45CBM » Inquire 60-70CBM V Shape »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Bulk cement, flour, fly ash, lime powder and other dry powder materials.
Wide area fluidized bed with a large angle tank so unloading is faster with less residue. The linear arrangement of the intake pipe makes the air intake smoother and unloading more efficient.
V shape unloads faster with lower residue; W shape offers larger volume. Both are available in carbon steel or aluminum.
Weichai 4102 engine and Bohai 12 CBM/min air compressor as standard. Other brands are optional.
