30 Ton Tipper Semi Trailer
U-shape / dustpan box | fast, clean discharge
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction
The 30 ton tipper semi trailer uses a U-shape (or dustpan type) cargo box with no dead corners, so bulk material flows out completely – no manual cleaning and no residue left between loads.
The rounded U floor also lowers the center of gravity and sheds weight versus a rectangular box, which matters on every trip when you are paid by the ton.
Applications
- Sand and stone – quarry to construction site.
- Coal and minerals – mine haulage.
- Garbage transportation – waste and refuse hauling.

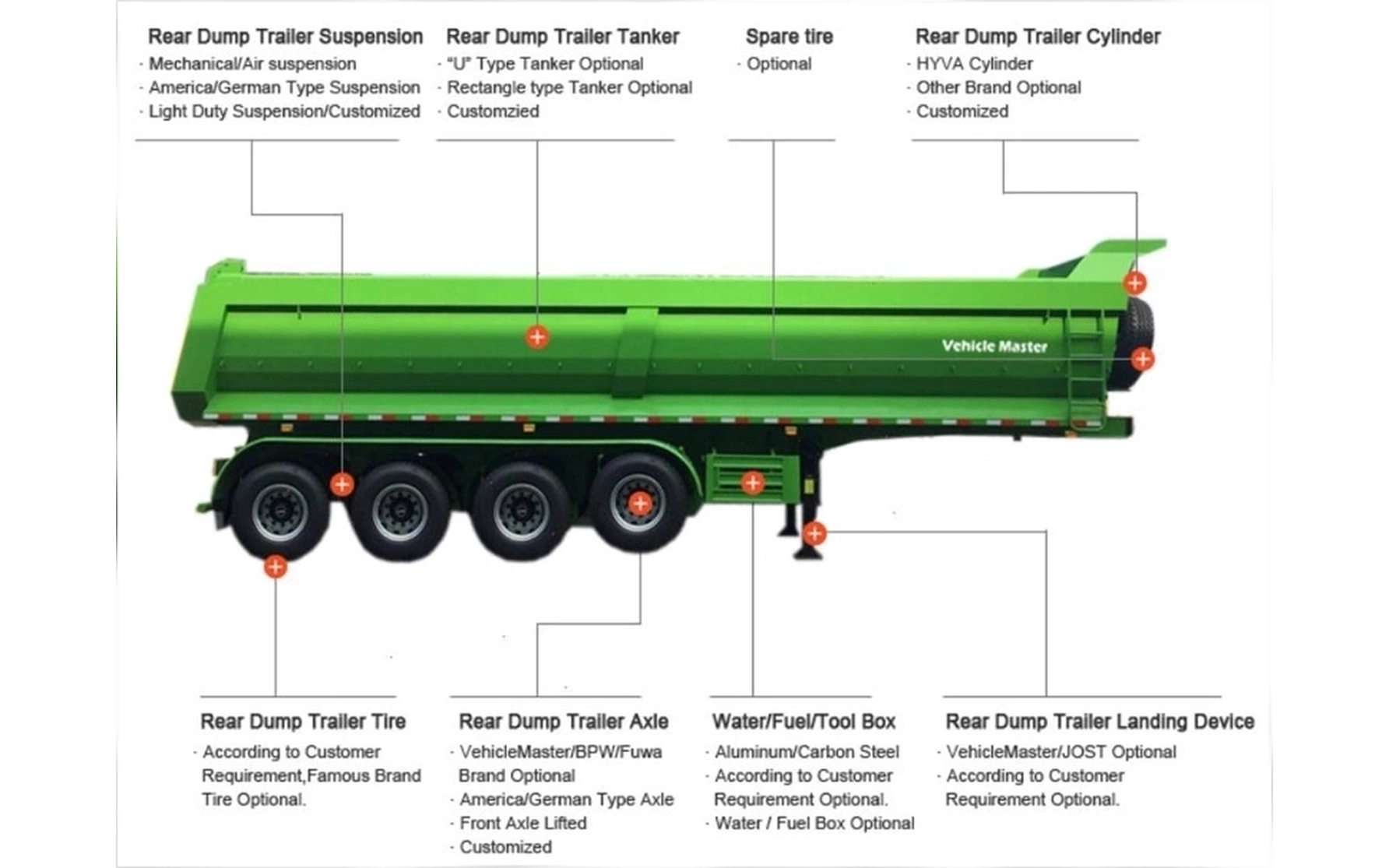

Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Sand/stone, coal/mineral and garbage loading |
| Dump Style | Rear Dump |
| Loading Capacity | 30 Tons |
| Dimension (L×W×H) | 11000 × 2500 × 2800 mm |
| CARGO BOX | |
| Cargo Style | U-shape / dustpan type |
| Floor Plate Thickness | 5 mm |
| Cargo Thickness | 4 mm |
| Cylinder | HYVA (model by cargo box length) |
| Lifting Mechanism | Mallory T type / F type / front direct top |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | Q345 / T700 |
| Main Beam Height | 500 mm |
| Upper / Middle / Lower Plate | 14 mm / 8 mm / 16 mm |
| Painting | Shot blasting + polyurethane |
| AXLE & SUSPENSION | |
| Axle | 2 / 3 × 13T |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical / Airbag |
| Leaf Spring | 90mm × 13/16mm × 10 |
| Front Axle Lifting | Available |
| WHEEL & TIRE & ACCESSORIES | |
| Tire | 11.00R20 / 12R22.5 × 8/12/16 pieces |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 8.0 / 9.0, Steel / Aluminum |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28T two-speed, JOST |
| Tool Box | Steel/aluminum |
Dimensions
Features & Benefits
- HYVA hydraulic system – stable lifting force and long service life.
- Manganese plate cargo box – 5 mm floor / 4 mm sides, bent and welded for abrasive loads.
- Shot blasting + polyurethane painting – high oxidation resistance, stronger adhesion.
- Front axle lifting available for tire saving on empty return.
- Three box shapes: rectangular (most popular), round (less residue), dustpan (fast full-tip).
- 42 tough ribs design ensures the safety and carrying capacity.
- Specially designed anti tire abrasion suspension system prevents tire offset after loading.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison

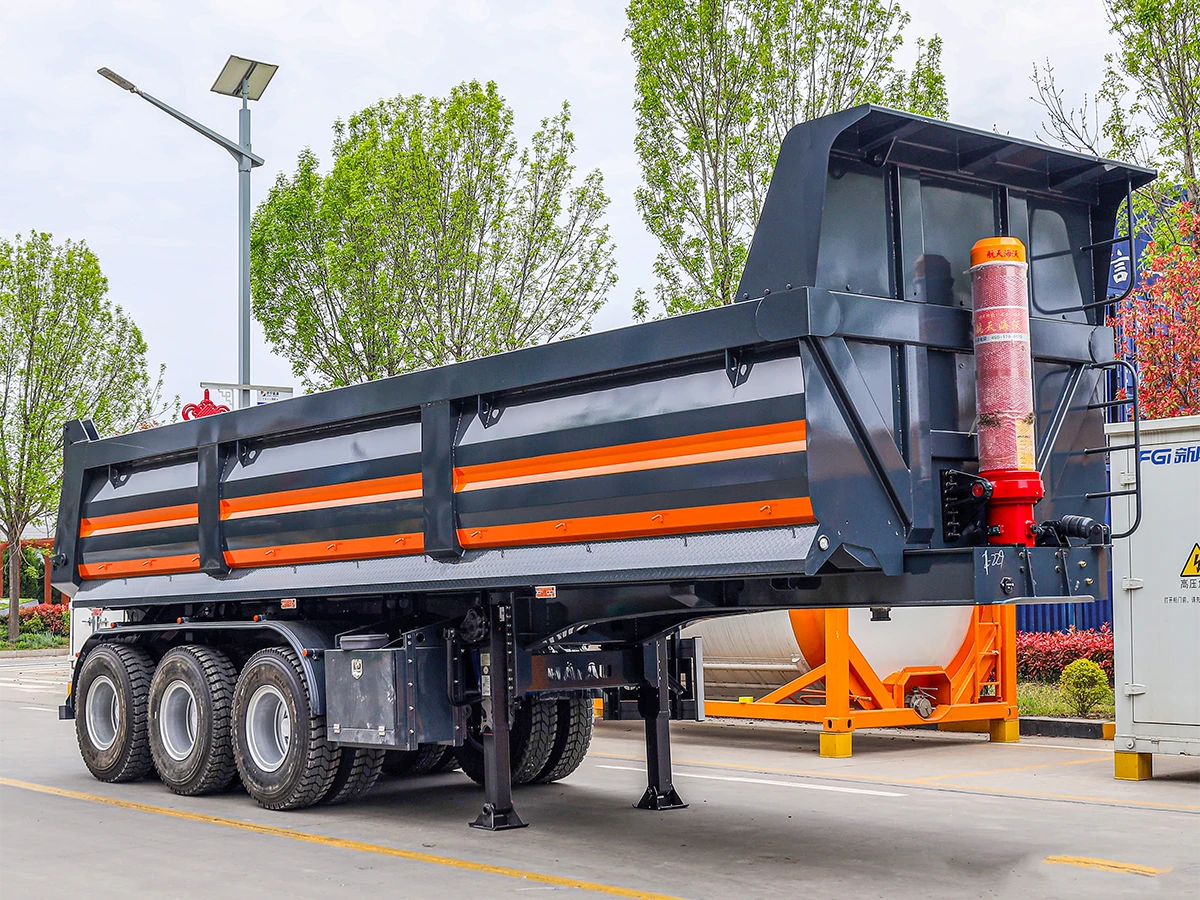

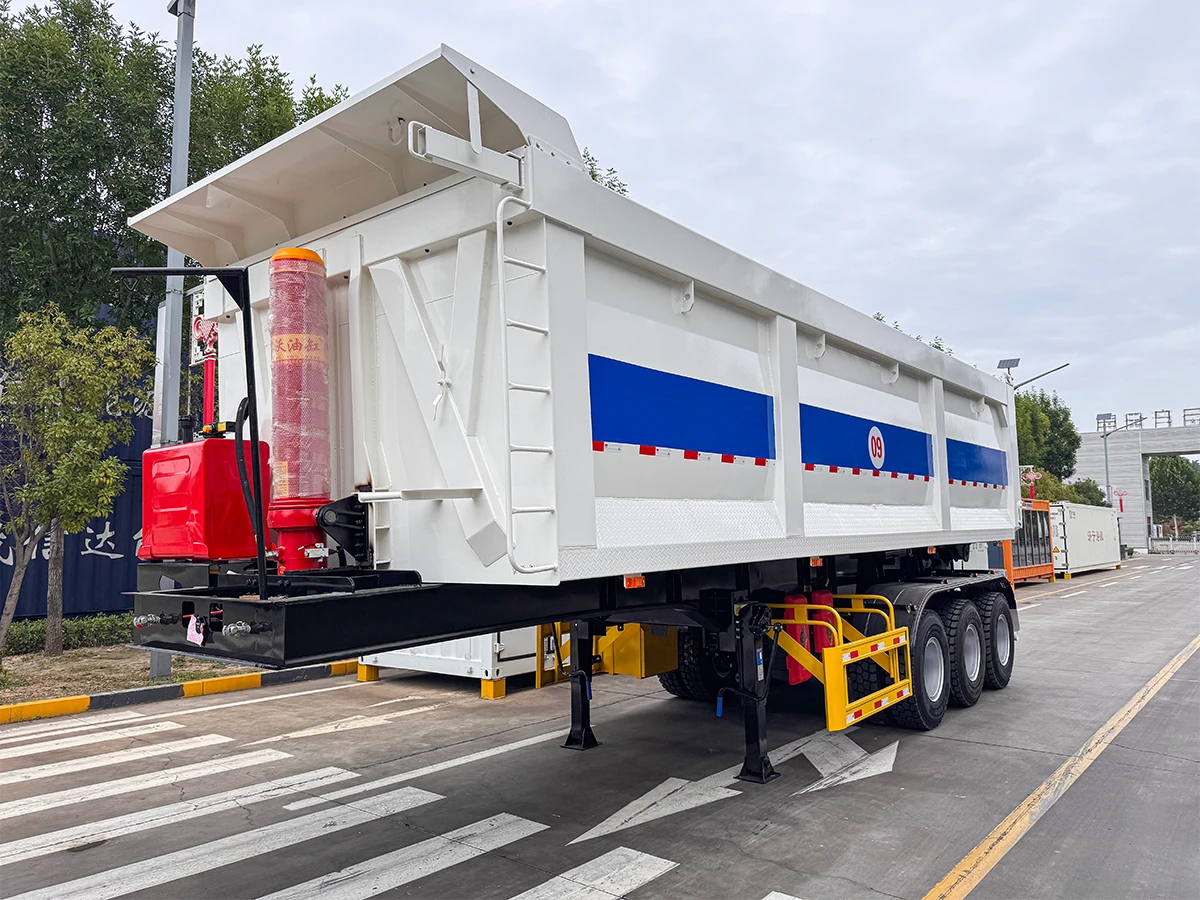

| Item | 30T (This Page) | 50T | 60T | 80T | 100T |
|---|---|---|---|---|---|
| Loading Capacity | 30 T | 50 T | 60 T | 80 T | 100 T |
| Axle | 2/3 × 13T | 3 × 16T | 3 × 16T | 4 × 16T | 4 × 16T reinforced |
| Cargo Box | U-shape / dustpan | Rectangular / round | Rectangular / round | 11 m reinforced | 11 m mining duty |
| Floor Plate | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Best for | Sand / coal / garbage | Construction supply | Heavy construction | Mine haulage | Heavy mining |
Inquire 30T (This Page) » Inquire 50T » Inquire 60T » Inquire 80T » Inquire 100T »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.

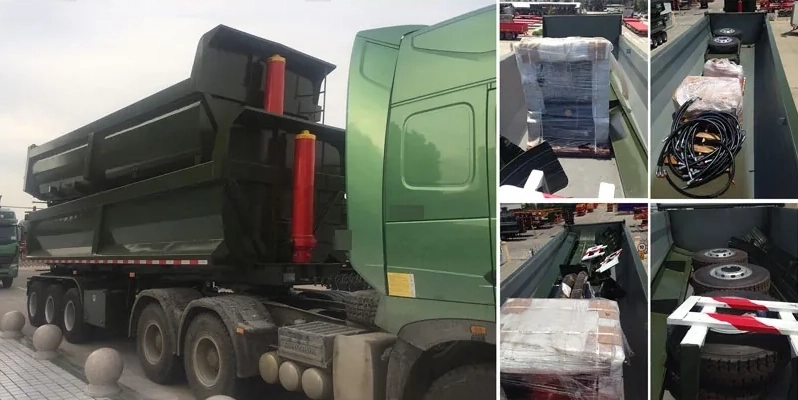

Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
HYVA cylinders as standard. The cylinder model is selected according to the cargo box length.
Rectangular, round and dustpan shapes. Rectangular is the most popular for mining; round shape reduces residue for sticky material.
Mallory type (T type), single cylinder floating connecting rod type (F type), or front direct top type.
