3 Axle 100 Ton Lowbed Semi Trailer
Heavy duty equipment transport | Loading capacity customizable from 30 to 120 tons
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction
This 3 axle 100 ton lowbed semi trailer is built for heavy duty equipment transport – excavators, loaders, transformers and construction machinery. The uniquely designed low-load platform provides a lower transport center of gravity and smoother travel on rough roads.
As one of the most professional semi trailer manufacturers, Vehicle Master supplies this 100 ton lowbed trailer at factory direct price with free customization: load capacity from 30 to 120 tons, 3/4 axle configurations, detachable gooseneck, mechanical or hydraulic ramps, and widened parts.
Applications
- Engineering machinery transport: efficiently carries excavators, loaders and bulldozers.
- Heavy equipment handling: safely transfers generator sets, industrial boilers and transformers.
- Prefabricated component delivery: transports precast beams and steel box girders.
- Mining machinery relocation: reinforced structure for mine-site duty.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.

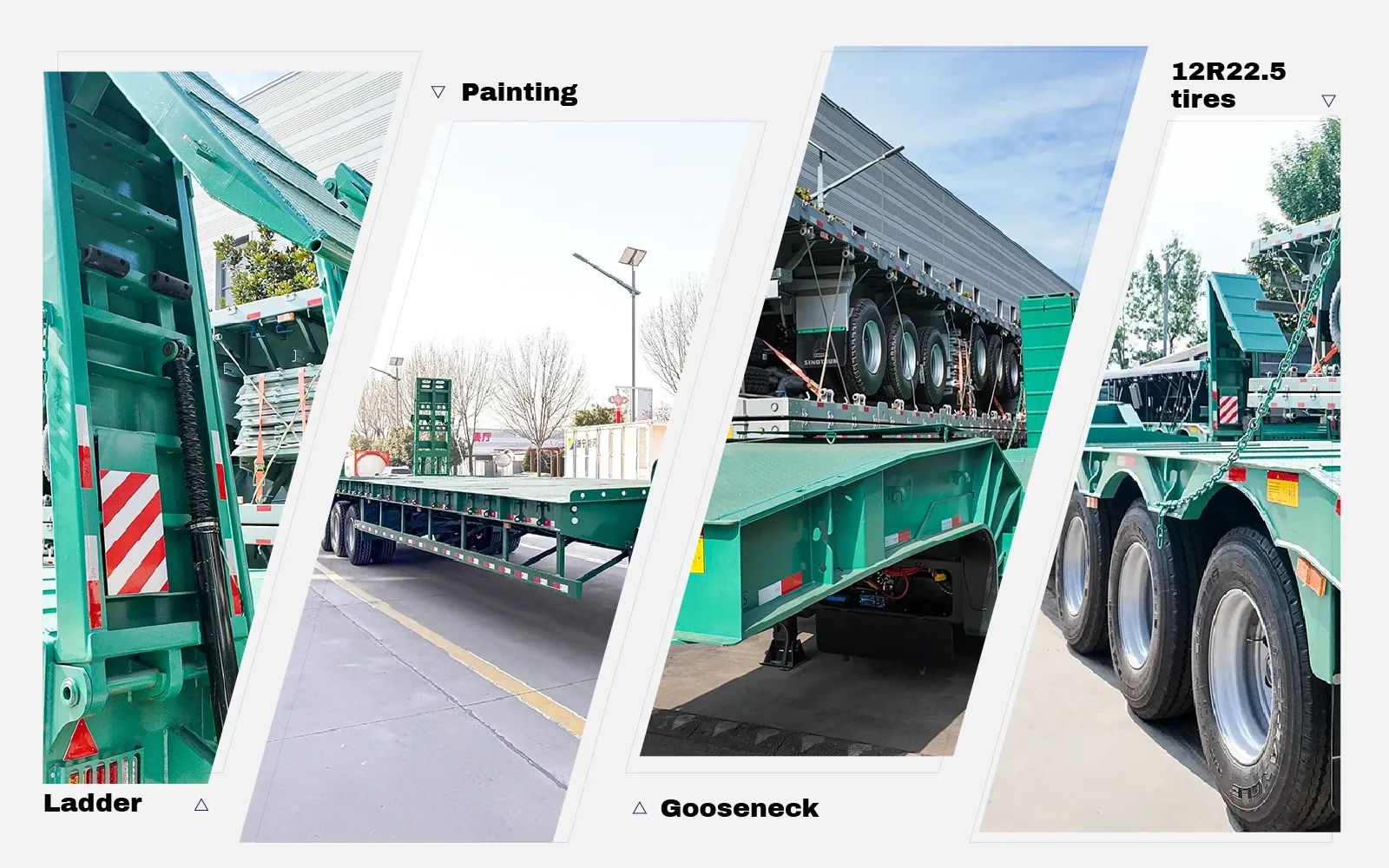

| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Heavy duty equipment loading |
| Loading Capacity | 100 Tons (30 – 120 T customizable) |
| Dimension (L×W×H) | 13000 × 3000 × 1760 mm |
| Painting | Polyurethane combination painting |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | Q345 / T700 high strength steel |
| Main Beam Height | 500 mm |
| Upper / Middle / Lower Plate | 24 mm / 14 mm / 26 mm |
| Platform Thickness | 4 mm |
| AXLE & SUSPENSION | |
| Axle | 3 Axles × 16 Ton |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | 90mm × 13mm × 10 / 90mm × 16mm × 10 |
| Steering Axles | Available |
| WHEEL & TIRE | |
| Tire | 12R22.5 / 8.25R20 (12 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5 / 6.5-20, Steel / Aluminum |
| Tire Style | Covered or Uncovered |
| ACCESSORIES | |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Ladder | Mechanical Spring / Hydraulic |
| Detachable Gooseneck | Available |
| Widened Parts | Available |
| Tool Box | Steel / Aluminum |
| Warranty | 1 year on main parts |

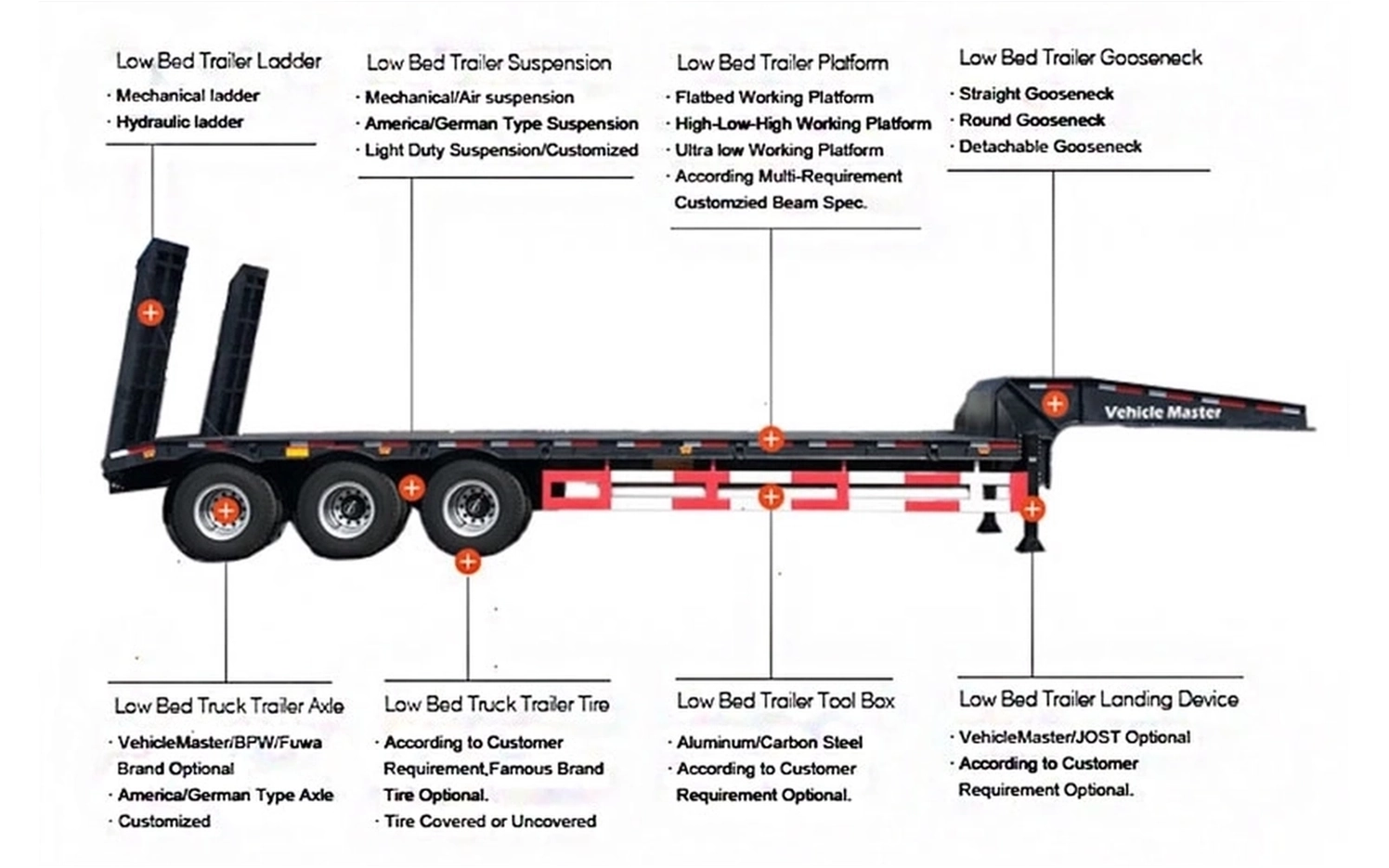

Dimensions
Features & Benefits
- High-quality steel: full thickness steel with titanium content of 0.98‰ ensures beam and frame strength – no deformation over long-term heavy duty use.
- Electrophoresis painting: resistance and painting effect can last for over 10 years.
- 42 tough ribs design: ensures the safety and carrying capacity.
- Anti tire abrasion suspension system: specially designed to prevent tire offset after loading.

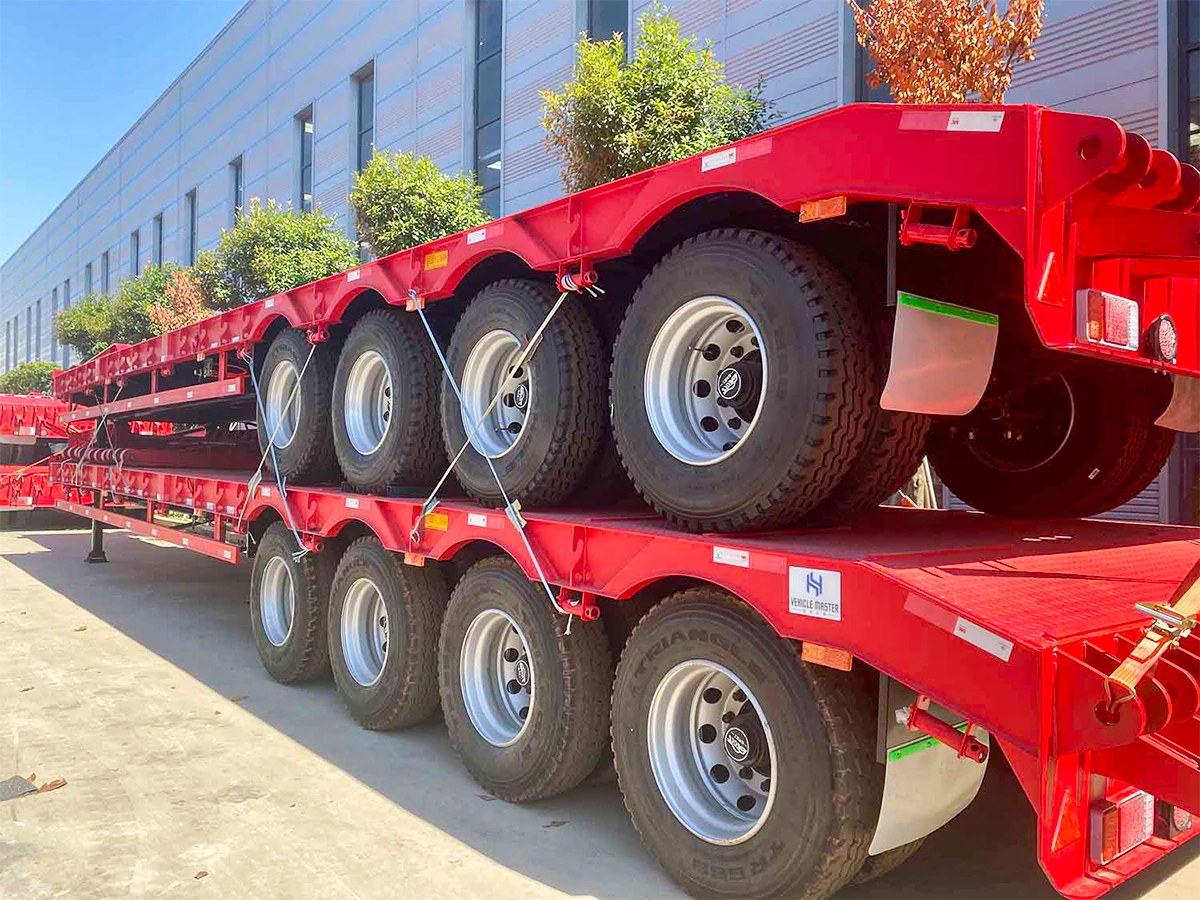

- Hydraulic or mechanical ramps: anti-slip surface lets self-propelled machinery drive on and off without extra lifting equipment.
- Customizable load capacity: from 30 to 120 tons to precisely match your equipment weight.
- Detachable gooseneck option: front loading for extra-tall machinery without a crane.
- Widened parts: foldable widening plates for over-width equipment.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison

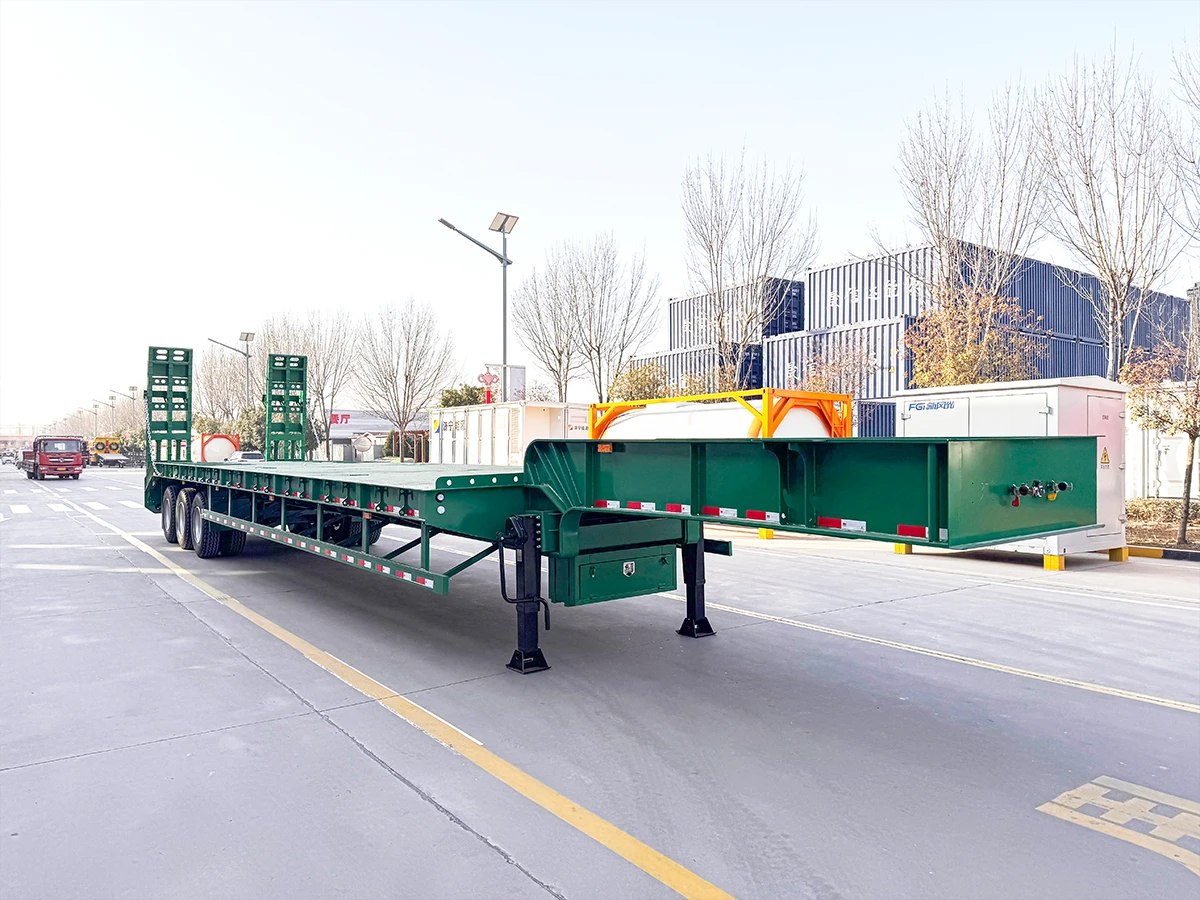

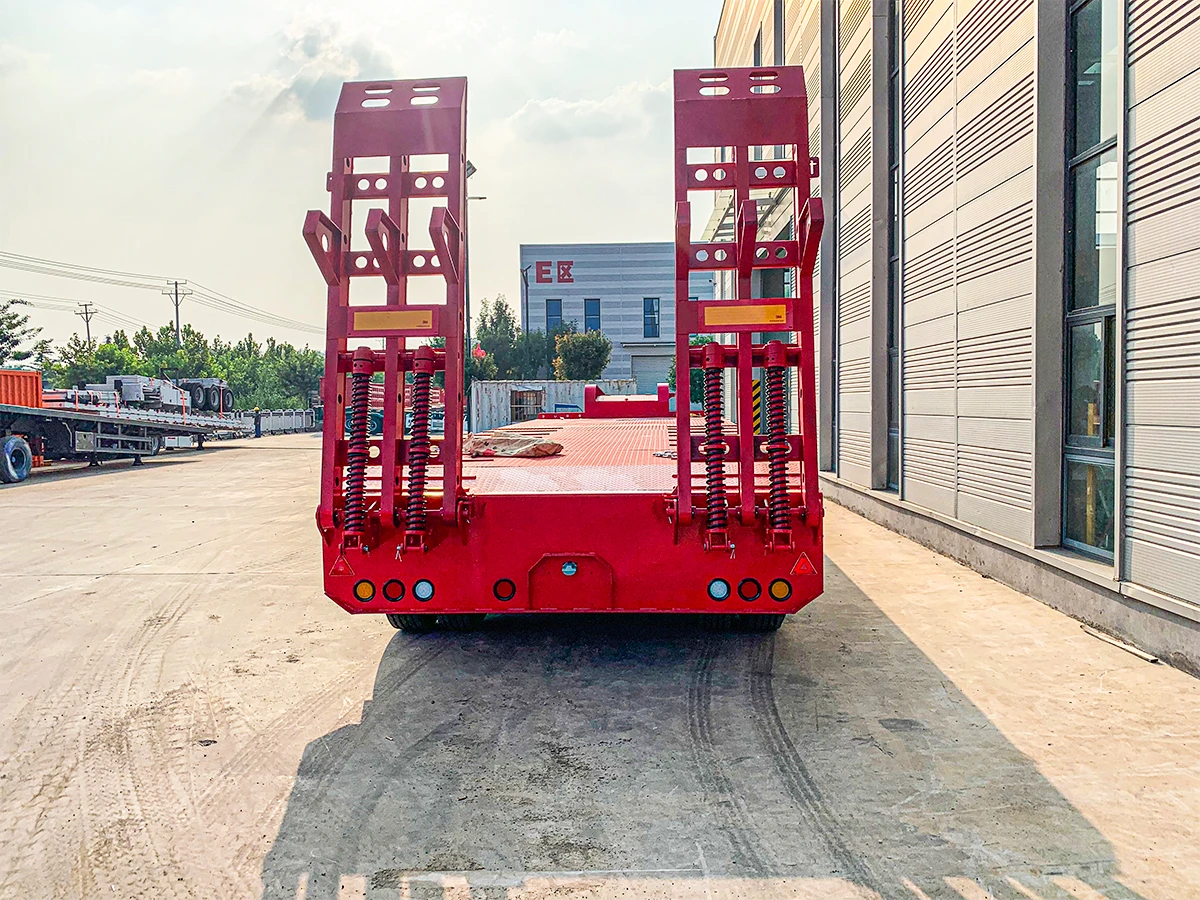

| Item | 3 Axle 60T | 3 Axle 80T | 3 Axle 100T (This Page) | 4 Axle 30-150T |
|---|---|---|---|---|
| Loading Capacity | 60 T | 80 T | 100 T | 30 – 150 T |
| Axle | 3 × 13T | 3 × 16T | 3 × 16T | 4 × 16T |
| Dimension (mm) | 13000×3000×1760 | 13000×3000×1760 | 13000×3000×1760 | 13000×3000×1760 |
| Main Beam Plates | 24 / 14 / 26 mm | 24 / 14 / 26 mm | 24 / 14 / 26 mm | 24 / 14 / 26 mm |
| Platform Thickness | 4 mm | 4 mm | 4 mm | 4 mm |
| Tire | 12R22.5 × 12 | 12R22.5 × 12 | 12R22.5 × 12 | 12R22.5 × 16 |
| Detachable Gooseneck | Available | Available | Available | Available |
Inquire 3 Axle 60T » Inquire 3 Axle 80T » Inquire 3 Axle 100T (This Page) » Inquire 4 Axle 30-150T »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.

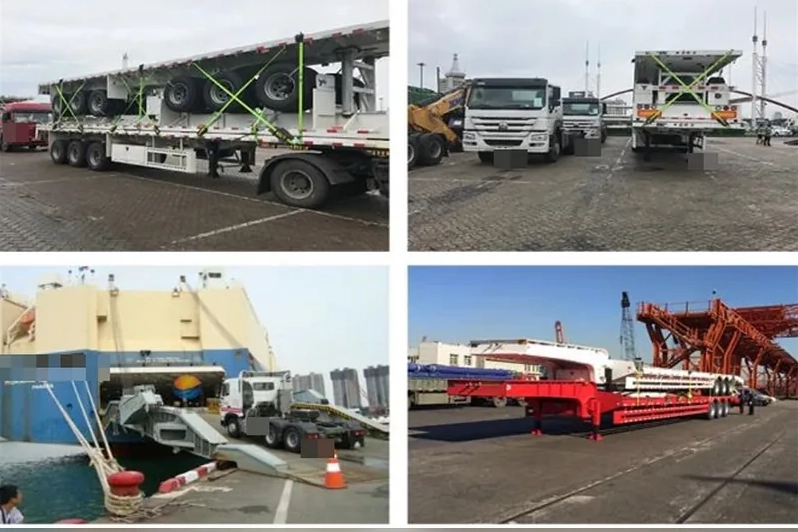

Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Yes. The 3×16T axle configuration is rated for 100 tons evenly distributed. For concentrated loads (single heavy machine), we reinforce the platform locally – free of charge with your order.
Choose 3 axles for good roads and even loads; choose 4 axles for poor roads (soft ground, mining sites) or when local axle-load regulations limit per-axle weight.
If you transport machinery taller than 3.2 m (transformers, large excavators), yes – the front-loading gooseneck avoids crane costs. Hydraulic operation takes one person about 10 minutes.
By ro-ro ship, bulk cargo vessel, or flat rack container depending on destination and specification. Two 3-axle lowbed trailers can share one 40ft flat rack to save freight.
15 – 30 days after order confirmation, depending on customization level.
Yes. OEM, CKD and SKD cooperation are available for all lowbed models.
