4 Axle Lowbed Semi Trailer
30 – 150 tons heavy duty haulage | 4 x 16T axles for tough road conditions
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction
The 4 axle lowbed semi trailer is built for 30 – 150 ton loads: large excavators, bulldozers, drilling rigs and transformers. The fourth axle spreads the load so each axle stays within legal limits even on markets with strict axle-load control.
For poor road conditions – mining areas, unpaved rural roads – 4 axles with mechanical suspension and 16 tires keep ground pressure low and traction stable. Beyond 150 tons, see our multi-axle and modular lowbed pages.
Applications
- Engineering machinery transport: efficiently carries excavators, loaders and bulldozers.
- Heavy equipment handling: safely transfers generator sets, industrial boilers and transformers.
- Prefabricated component delivery: transports precast beams and steel box girders.
- Mining machinery relocation: reinforced structure for mine-site duty.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Heavy duty haulage for mining & construction machinery |
| Loading Capacity | 30 – 150 Tons |
| Dimension (L×W×H) | 13000 × 3000 × 1760 mm |
| Painting | Polyurethane combination painting |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | Q345 / T700 high strength steel |
| Main Beam Height | 500 mm |
| Upper / Middle / Lower Plate | 24 mm / 14 mm / 26 mm |
| Platform Thickness | 4 mm |
| AXLE & SUSPENSION | |
| Axle | 4 × 16T heavy duty |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | 90mm × 13mm × 10 / 90mm × 16mm × 10 |
| Steering Axles | Available |
| WHEEL & TIRE | |
| Tire | 12R22.5 / 8.25R20 (16 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5 / 6.5-20, Steel / Aluminum |
| Tire Style | Covered or Uncovered |
| ACCESSORIES | |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Ladder | Mechanical Spring / Hydraulic |
| Detachable Gooseneck | Available |
| Widened Parts | Available |
| Tool Box | Steel / Aluminum |
| Warranty | 1 year on main parts |

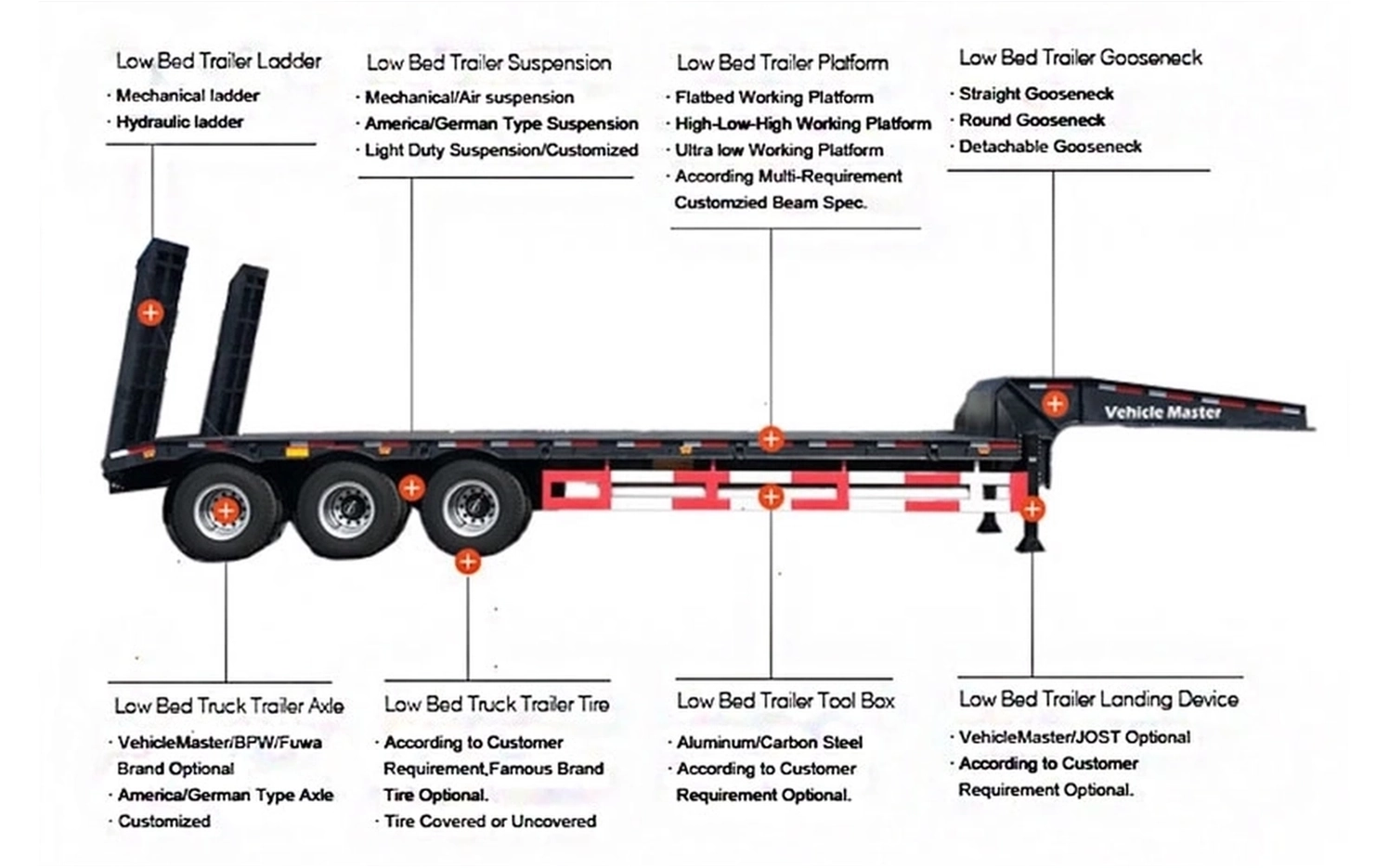

Dimensions

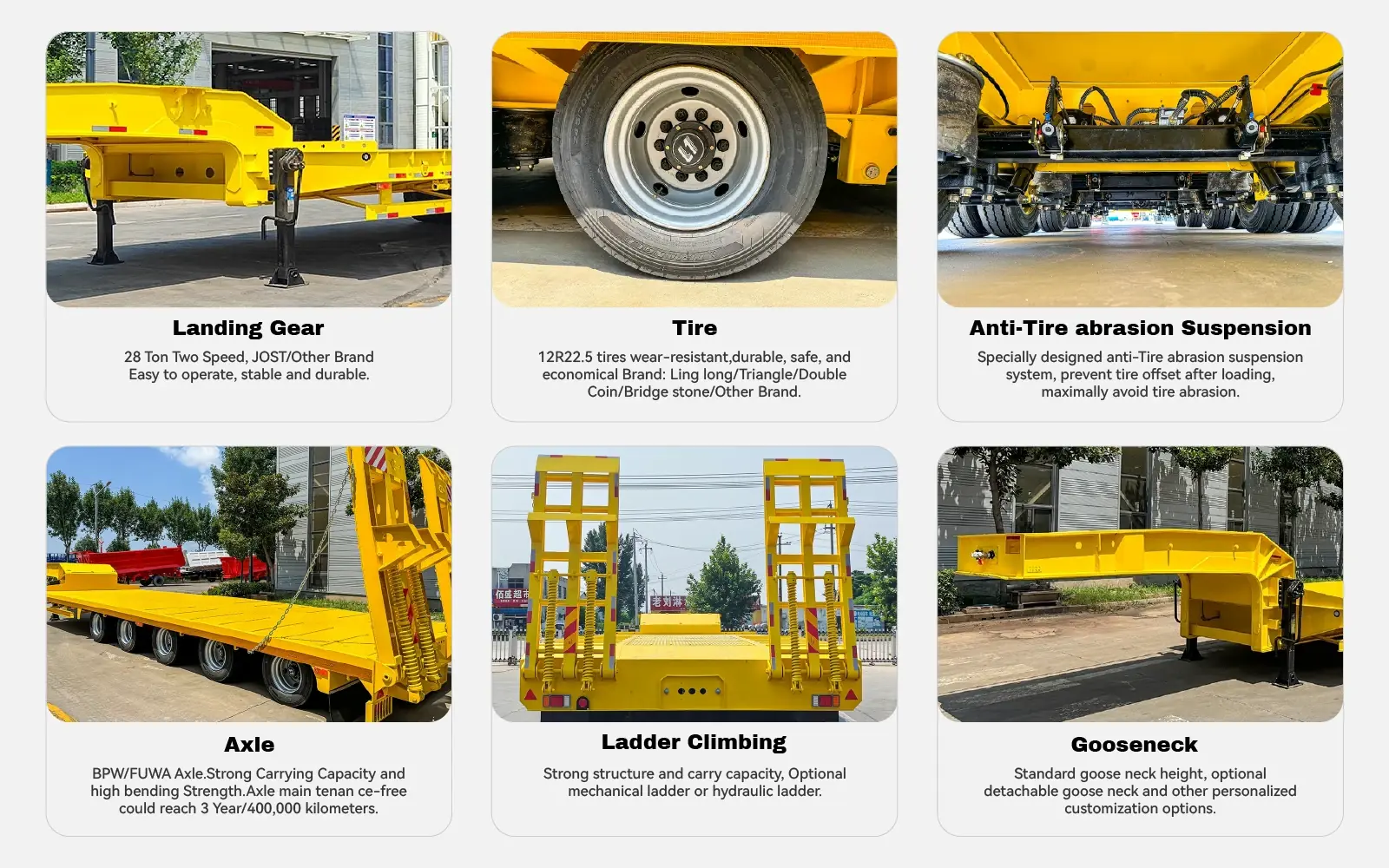

Features & Benefits
- High-quality steel: full thickness steel with titanium content of 0.98‰ ensures beam and frame strength – no deformation over long-term heavy duty use.
- Electrophoresis painting: resistance and painting effect can last for over 10 years.
- 42 tough ribs design: ensures the safety and carrying capacity.
- Anti tire abrasion suspension system: specially designed to prevent tire offset after loading.
- Hydraulic or mechanical ramps: anti-slip surface lets self-propelled machinery drive on and off without extra lifting equipment.
- Customizable load capacity: from 30 to 150 tons to precisely match your equipment weight.
- Detachable gooseneck option: front loading for extra-tall machinery without a crane.
- Widened parts: foldable widening plates for over-width equipment.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | 3 Axle 60T | 3 Axle 80T | 3 Axle 100T | 4 Axle 30-150T (This Page) |
|---|---|---|---|---|
| Loading Capacity | 60 T | 80 T | 100 T | 30 – 150 T |
| Axle | 3 × 13T | 3 × 16T | 3 × 16T | 4 × 16T |
| Dimension (mm) | 13000×3000×1760 | 13000×3000×1760 | 13000×3000×1760 | 13000×3000×1760 |
| Main Beam Plates | 24 / 14 / 26 mm | 24 / 14 / 26 mm | 24 / 14 / 26 mm | 24 / 14 / 26 mm |
| Platform Thickness | 4 mm | 4 mm | 4 mm | 4 mm |
| Tire | 12R22.5 × 12 | 12R22.5 × 12 | 12R22.5 × 12 | 12R22.5 × 16 |
| Detachable Gooseneck | Available | Available | Available | Available |
Inquire 3 Axle 60T » Inquire 3 Axle 80T » Inquire 3 Axle 100T » Inquire 4 Axle 30-150T (This Page) »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.

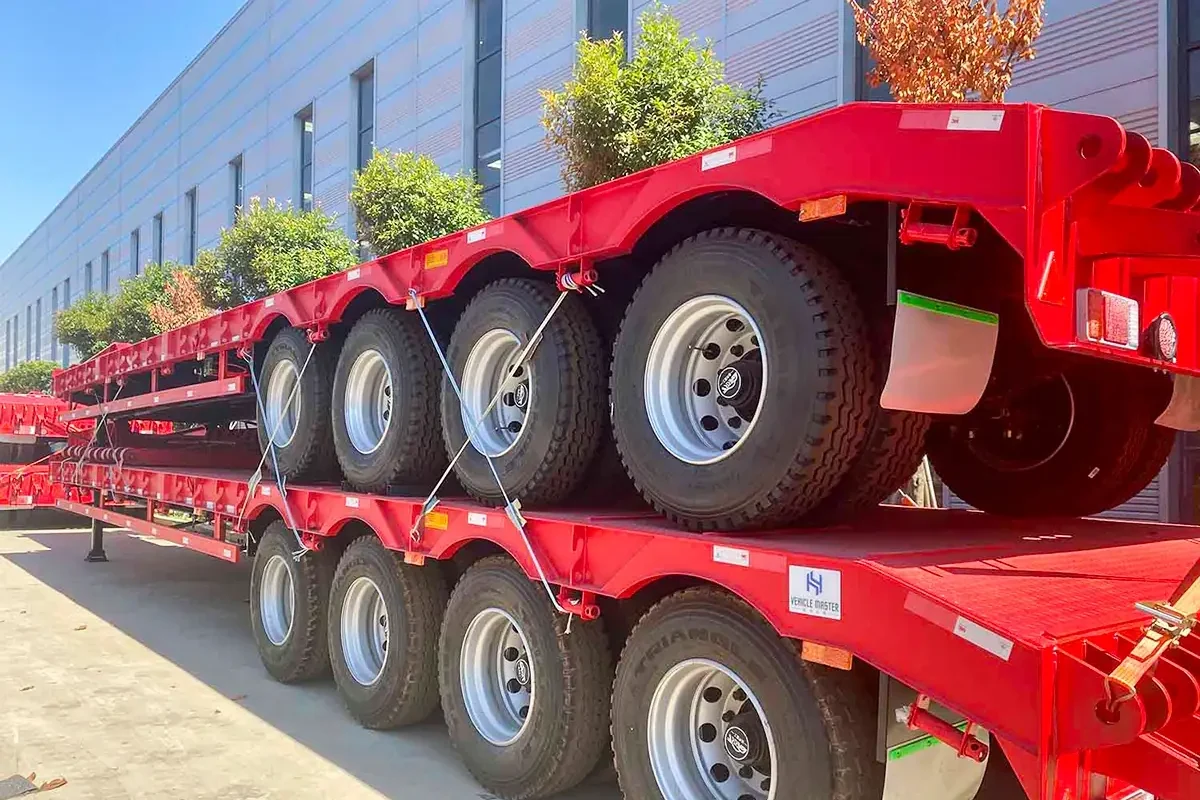

Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Standard models range from 30 to 150 tons. Multi-axle and modular lowbed trailers can reach 200-450 tons. Loading capacity is customizable according to your cargo.
Yes. Detachable gooseneck is available for all lowbed models, which makes it easier to load excavators and other self-propelled machinery.
Mechanical spring ladders and hydraulic ladders are both available. Hydraulic ladders are recommended for frequent loading of heavy machinery.
By ro-ro ship, bulk cargo vessel, or flat rack container depending on the destination port and trailer specification.
