20ft Flatbed Semi Trailer
Compact 20ft container & cargo platform | 20 – 60 tons, 2 or 3 axles
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction
The 20ft flatbed semi trailer is the compact choice for 20ft containers, steel, timber and bagged cargo in cities and short-haul routes. Its 7,000 mm platform turns tighter and loads easier in crowded yards than a 40ft trailer.
Built with the same Q345 main beam as our 40ft model, it carries 20 – 60 tons on 2 or 3 axles. Note: a 20ft flatbed cannot legally carry a 40ft container – see our 40ft container flatbed page for that job.
Applications
- Container transport: 20ft container or general cargo loading.
- Steel and pipe transport: anti-slip platform with lashing rings.
- General cargo: bagged, boxed and palletized goods.
- Machinery: small equipment that fits flat deck transport.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | 20ft container & general cargo transport |
| Loading Capacity | 20 – 60 Tons |
| Dimension (L×W×H) | 7000 × 2500 × 1570 mm |
| Painting | Electrophoresis painting |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | Q345 / T700 |
| Main Beam Height | 500 mm |
| Upper / Middle / Lower Plate | 12 mm / 6 mm / 14 mm |
| Platform Thickness | 2.5 mm anti-slip checkered plate |
| AXLE & SUSPENSION | |
| Axle | 2 / 3 × 13T |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | 90mm × 13mm × 10 / 90mm × 16mm × 10 |
| WHEEL & TIRE | |
| Tire | 12R22.5 × 8 / 12 |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5, Steel / Aluminum |

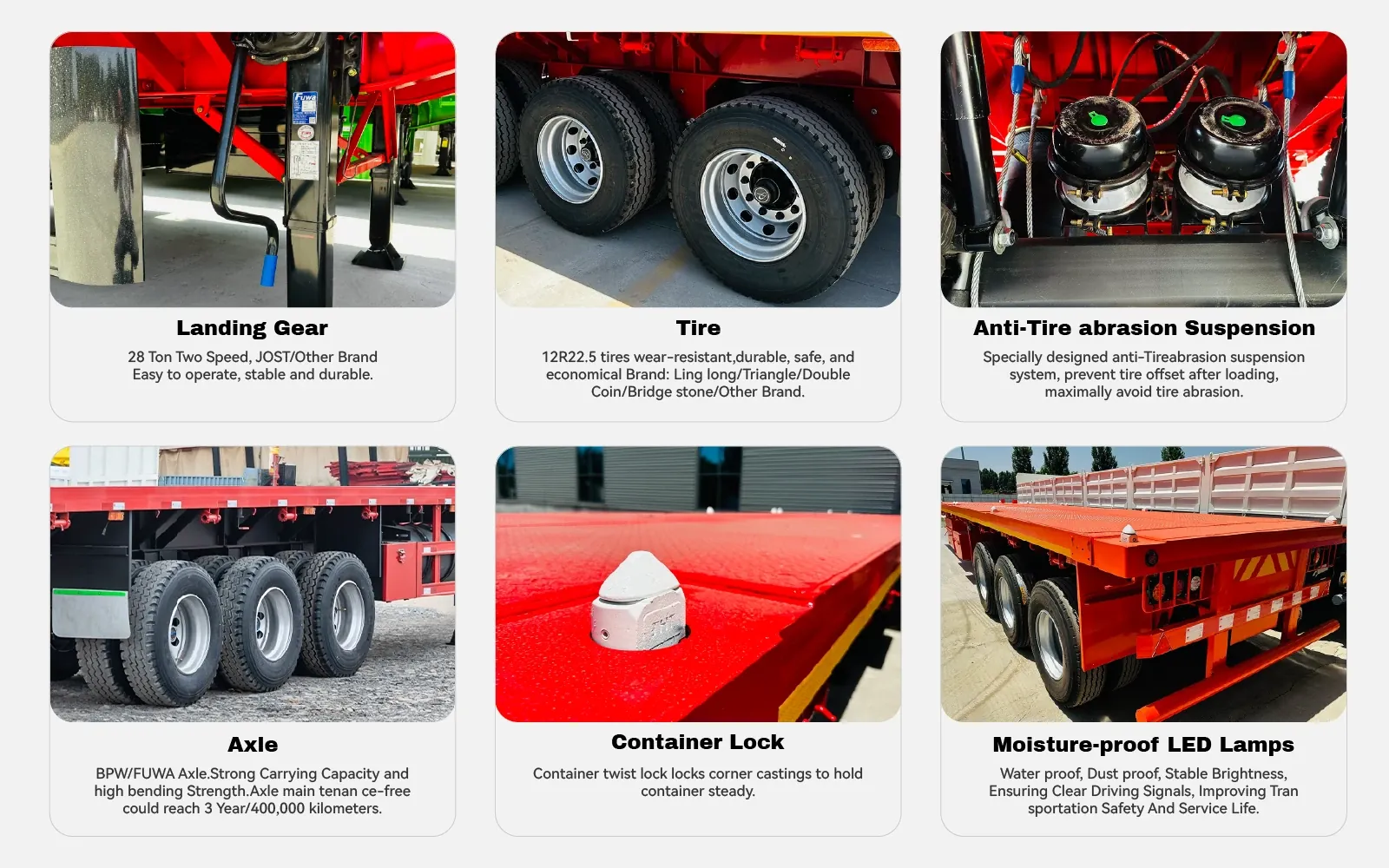

| ACCESSORIES | |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Twist Lock | 4 sets (20ft container) |
| Tool Box | Steel / Aluminum |
| Warranty | 1 year on main parts |

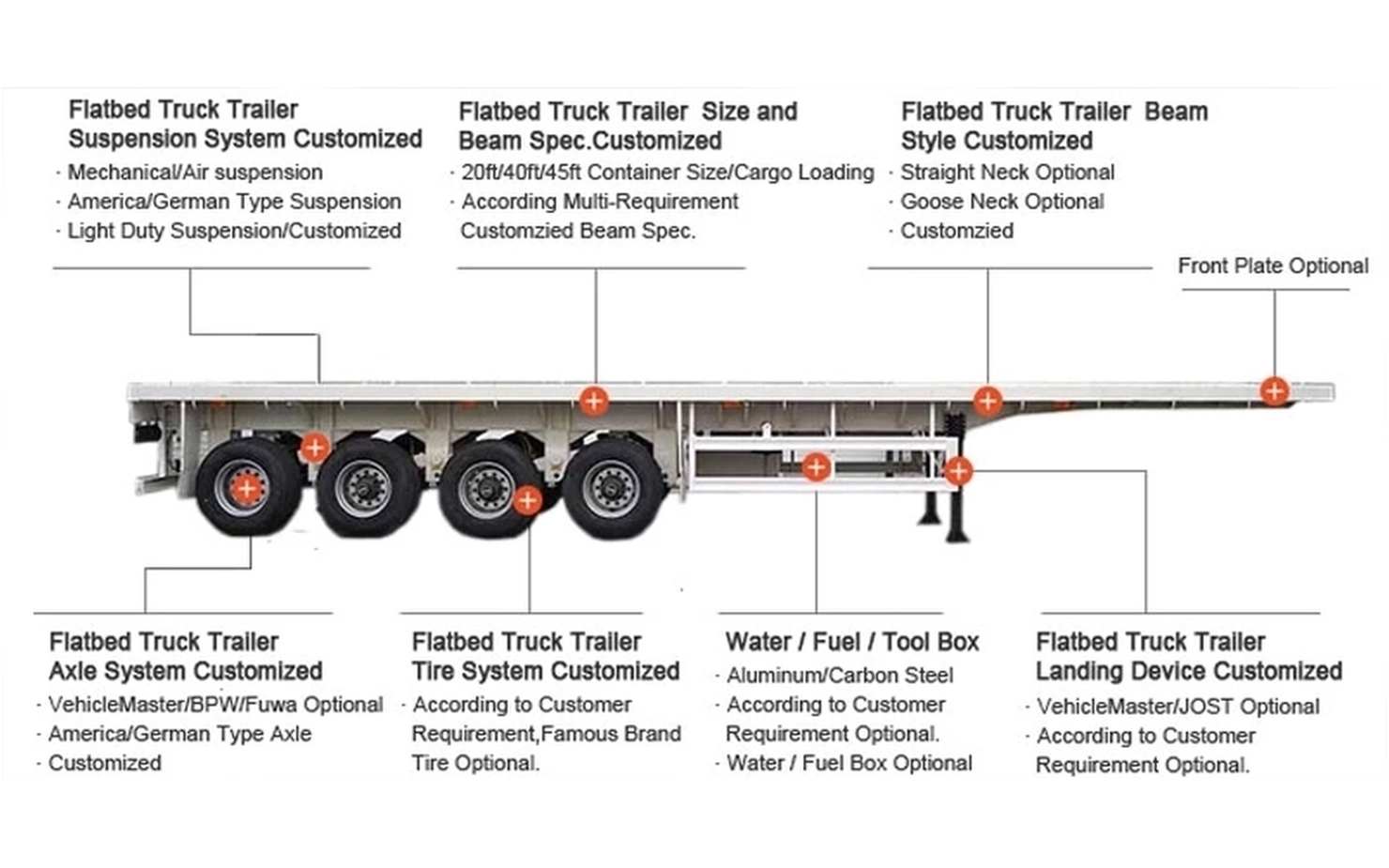

Dimensions
Features & Benefits
- One trailer, two businesses: twist locks for containers, flat deck for general cargo – the most profitable single trailer for trading companies.
- Anti-slip platform: 2.5mm patterned steel plate.
- Electrophoresis painting: rust resistance lasting over 10 years.
- Freight-saving design: two flatbed trailers fit into one 40ft/45ft container for shipping.
- 42 tough ribs design ensures the safety and carrying capacity.
- Specially designed anti tire abrasion suspension system prevents tire offset after loading.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | 20ft (This Page) | 40ft | 45ft | 60T Heavy Duty |
|---|---|---|---|---|
| Length | 7,000 mm | 12,400 mm | 13,950 mm | 12,400 mm |
| Loading Capacity | 20 – 60 T | 30 – 80 T | 30 – 80 T | 60 T |
| Axles | 2 / 3 | 2 / 3 / 4 | 3 / 4 | 3 / 4 × 16T |
| Main Beam Plates | 12 / 6 / 14 mm | 16 / 10 / 18 mm | 16 / 10 / 18 mm | 16 / 10 / 18 mm reinforced |
| Platform Thickness | 2.5 mm | 3 mm | 3 mm | 3 mm |
| Twist Lock | 4 sets | 12 sets | 12 sets | 12 sets |
Inquire 20ft (This Page) » Inquire 40ft » Inquire 45ft » Inquire 60T Heavy Duty »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.

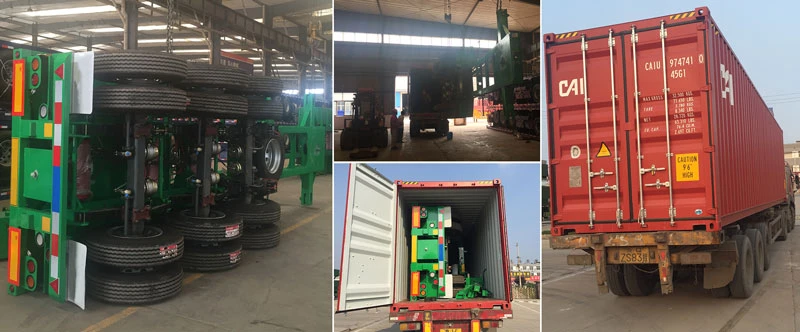

Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Yes. Twist locks (4 or 12 sets) can be installed so one trailer handles 20ft/40ft/45ft containers as well as general cargo.
Standard platforms are 2.5-4mm anti-slip patterned steel plate. Heavier duty cargo may require thicker plates – we customize on request.
Normally 15-30 days after order confirmation, depending on the customization level.
VEHICLE MASTER, FUWA, BPW and other brands are available. 13-ton and 16-ton axles are both optional.
