40ft Container Flatbed Semi Trailer
12 meters | 3 axles | 30-80 tons | Container & general cargo in one trailer
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction
This 40ft container flatbed semi trailer is the most versatile trailer in our lineup: 12 twist locks let it carry one 40ft container or two 20ft containers, and the 3mm anti-slip patterned platform handles steel, pipes, timber and machinery as flatbed cargo.
Supplied at factory direct price by Shandong Haoyue Vehicle (brand VEHICLE MASTER), with free customization on axle configuration (2/3/4 axles), platform thickness (2.5 – 4 mm) and twist lock layout.
Applications
- Container transport: 1×40ft or 2×20ft.
- Steel and pipe transport: anti-slip platform with lashing rings.
- General cargo: bagged, boxed and palletized goods.
- Machinery: small equipment that fits flat deck transport.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Container / cargo loading |
| Loading Capacity | 30 – 80 Tons |
| Dimension (L×W×H) | 12400 × 2500 × 1570 mm |
| Painting | Electrophoresis painting |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | Q345 / T700 |
| Main Beam Height | 500 mm |
| Upper / Middle / Lower Plate | 16 mm / 10 mm / 18 mm |
| Platform Thickness | 3 mm anti-slip patterned plate |
| AXLE & SUSPENSION | |
| Axle | 3 Axles × 13 Ton (optional 2/3/4) |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | 90mm × 13mm × 10 / 90mm × 16mm × 10 |
| WHEEL & TIRE | |
| Tire | 12R22.5 (12 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5, Steel / Aluminum |
| ACCESSORIES | |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Twist Lock | 12 sets |
| Tool Box | Steel / Aluminum |
| Warranty | 1 year on main parts |
Dimensions
Features & Benefits
- One trailer, two businesses: twist locks for containers, flat deck for general cargo – the most profitable single trailer for trading companies.
- Anti-slip platform: 3mm patterned steel plate, upgradeable to 4mm for heavy steel loads.
- Electrophoresis painting: rust resistance lasting over 10 years.
- Freight-saving design: two flatbed trailers fit into one 40ft/45ft container for shipping.
- 42 tough ribs design ensures the safety and carrying capacity.
- Specially designed anti tire abrasion suspension system prevents tire offset after loading.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | 20ft | 40ft (This Page) | 45ft | 60T Heavy Duty |
|---|---|---|---|---|
| Length | 7,000 mm | 12,400 mm | 13,950 mm | 12,400 mm |
| Loading Capacity | 20 – 60 T | 30 – 80 T | 30 – 80 T | 60 T |
| Axles | 2 / 3 | 2 / 3 / 4 | 3 / 4 | 3 / 4 × 16T |
| Main Beam Plates | 12 / 6 / 14 mm | 16 / 10 / 18 mm | 16 / 10 / 18 mm | 16 / 10 / 18 mm reinforced |
| Platform Thickness | 2.5 mm | 3 mm | 3 mm | 3 mm |
| Twist Lock | 4 sets | 12 sets | 12 sets | 12 sets |
Inquire 20ft » Inquire 40ft (This Page) » Inquire 45ft » Inquire 60T Heavy Duty »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Yes – 12 twist locks cover both 2×20ft (tandem) and 1×40ft positions. Twist locks are forged steel with dual-handle operation.
Yes. 40ft = 12.19 m; our deck is 12,400 mm including gooseneck. Search ’12m flatbed trailer’ and you land on the same product.
3mm anti-slip plate is standard. Choose 4mm if you constantly load steel coils, pipes or machinery with sharp feet.

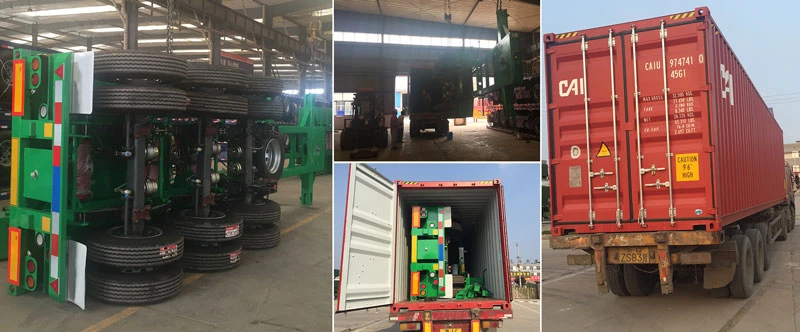

Two units fit into one 40ft/45ft container (stacked with frames), or by ro-ro / bulk vessel.
15 – 30 days depending on configuration.
