45ft Skeleton Semi Trailer
Lightweight 420mm beam | 45ft / 40ft / 2x20ft container positions
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available

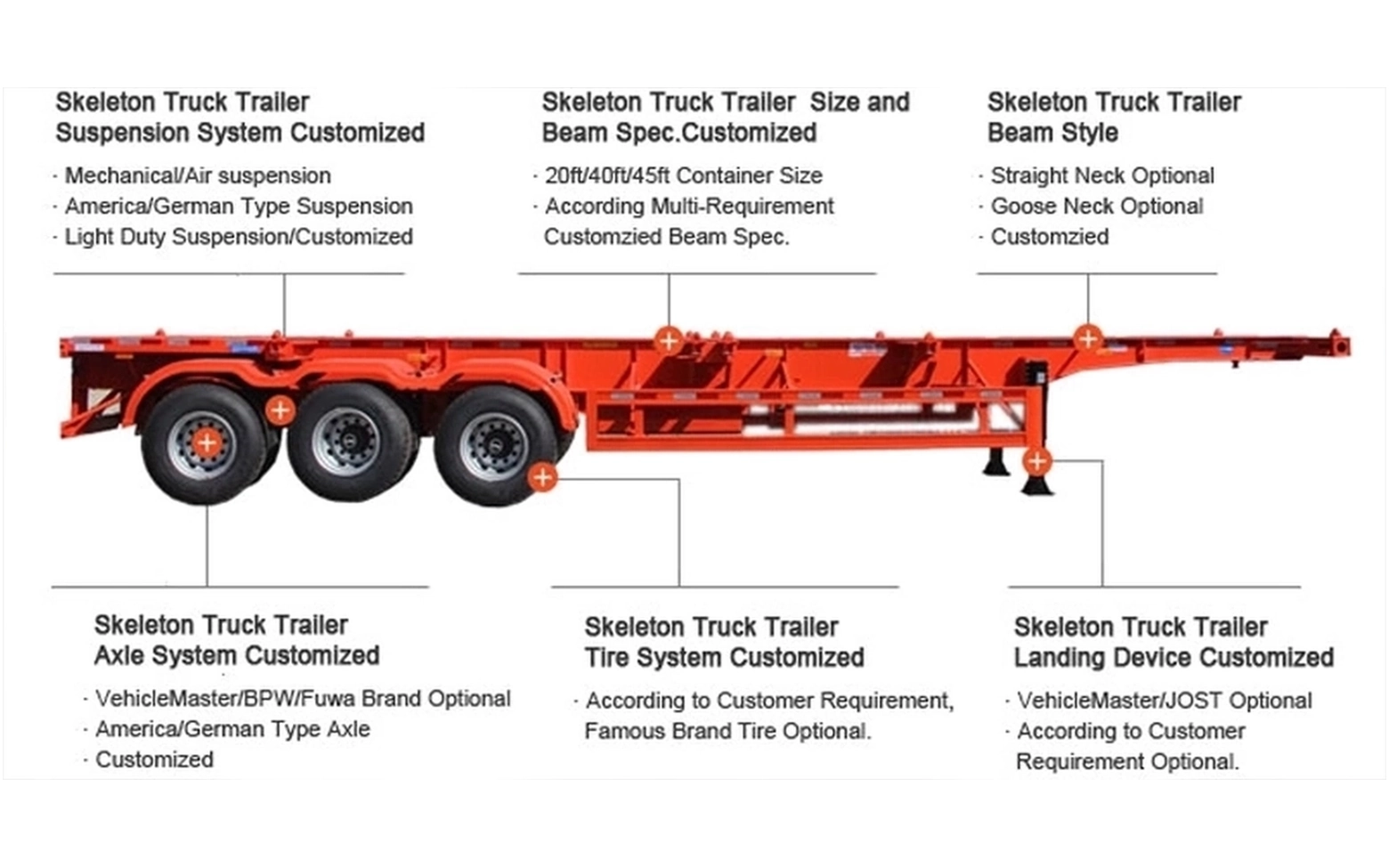

Configurations
Product Introduction
The 45ft skeleton semi trailer uses a lightweight 420 mm main beam with 10/5/10 mm plates, cutting tare weight while keeping 30 – 80 tons capacity – the right tool for high-cube 45ft boxes on long highway runs.
Twelve twist locks cover 45ft, 40ft and dual-20ft positions, so one trailer serves your whole container fleet. For heavier port work, choose the 500 mm beam 4-axle option.
Applications
- Container transport: 1×40ft, 2×20ft combinations.
- Port and terminal transfer: high-frequency short hauls.
- Shipping lines and leasing: CKD/SKD assembly cooperation available.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | 45ft container transport (also 40ft / 2x20ft) |
| Loading Capacity | 30 – 80 Tons |
| Dimension (L×W×H) | 13950 × 2500 × 1600 mm |
| Type | Gooseneck or Tandem |
| Painting | Electrophoresis painting |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | T700 |
| Main Beam Height | 420 mm (lightweight) |
| Upper / Middle / Lower Plate | 10 / 5 / 10 mm |
| Cross Ribs | 42 tough ribs design |
| AXLE & SUSPENSION | |
| Axle | 3 / 4 × 13/16T |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | 90mm × 13mm × 10 / 90mm × 16mm × 10 |
| WHEEL & TIRE | |
| Tire | 12R22.5 (12/16 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5, Steel / Aluminum |

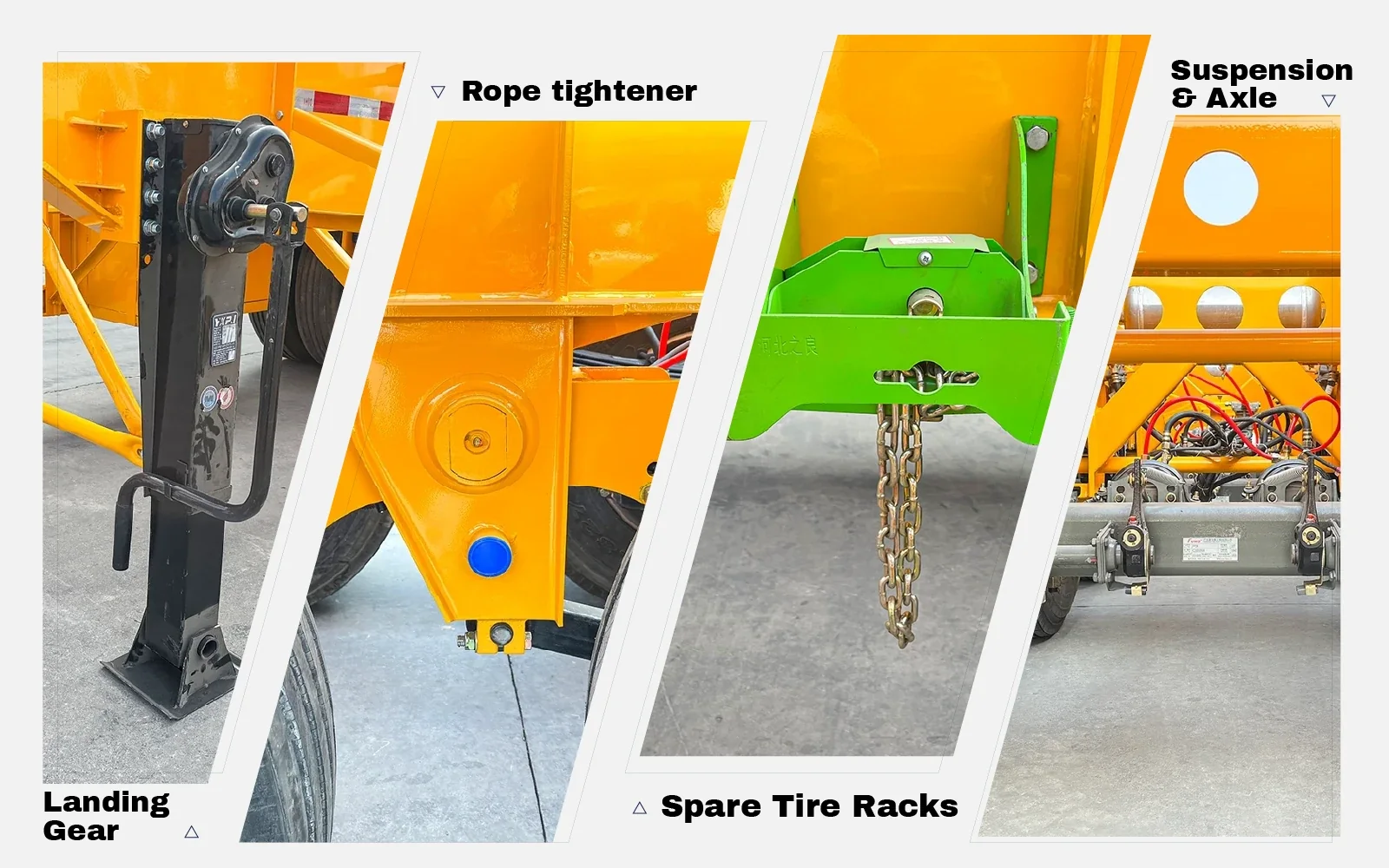

| ACCESSORIES | |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Twist Lock | 12 sets (45ft / 40ft / 2×20ft) |
| Warranty | 1 year on main parts |
Dimensions
Features & Benefits
- 42 tough ribs design ensures safety and carrying capacity.
- Anti-tire-abrasion suspension prevents tire offset after loading – a common skeleton trailer pain point.
- Lighter than flatbed: skeletal structure saves 800-1,200 kg tare weight vs flatbed, one more container of payload in gross-weight-limited markets.
- Electrophoresis painting – corrosion resistance for over 10 years, critical for coastal port duty.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | 20ft | 40ft | 45ft (This Page) | Terminal |
|---|---|---|---|---|
| Container Loading | 20ft | 1×40ft / 2×20ft | 1×45ft / 1×40ft / 2×20ft | 20/40/45ft |
| Loading Capacity | 20 – 50 T | 30 – 80 T | 30 – 80 T | 30 – 80 T |
| Axles | 2 / 3 | 3 / 4 | 3 / 4 | 3 |
| Main Beam Plates | 12 / 6 / 12 mm | 14 / 6 / 16 mm | 10 / 5 / 10 mm | 14 / 6 / 16 mm |
| Beam Height | 500 mm | 500 mm | 420 mm | 500 mm |
| Twist Lock | 4 sets | 12 sets | 12 sets | 12 sets |
Inquire 20ft » Inquire 40ft » Inquire 45ft (This Page) » Inquire Terminal »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping

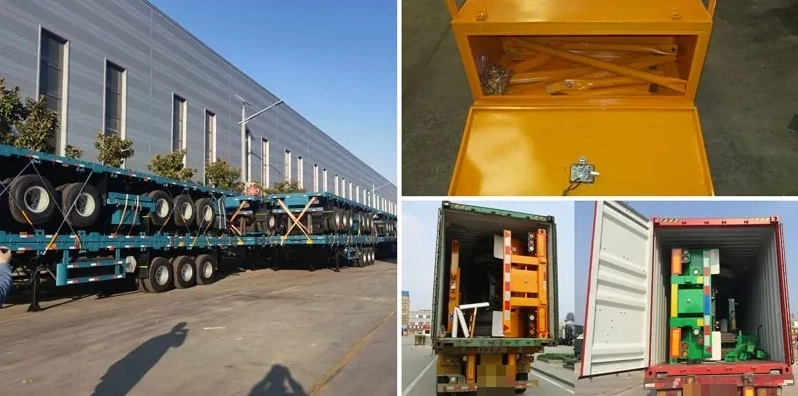

Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
20ft, 40ft and 45ft containers. Twist lock configuration (4 or 12 sets) is selected according to the container combination you transport.
Gooseneck type has a lower traction point for better stability; tandem (flat) type offers a simpler structure and lighter tare weight.
Yes. Loading capacity ranges from 20 to 80 tons depending on axle configuration (2/3/4 axles).
Yes. OEM, CKD and SKD cooperation are all available for skeleton semi trailers.
