Terminal Container Chassis Trailer
Port & yard shuttle specialist | electrophoresis paint, 10-year anti-rust
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction
The terminal container chassis trailer is built for the hardest job in container transport: hundreds of short shuttle cycles per day inside ports and rail yards, under reach stackers and terminal tractors.

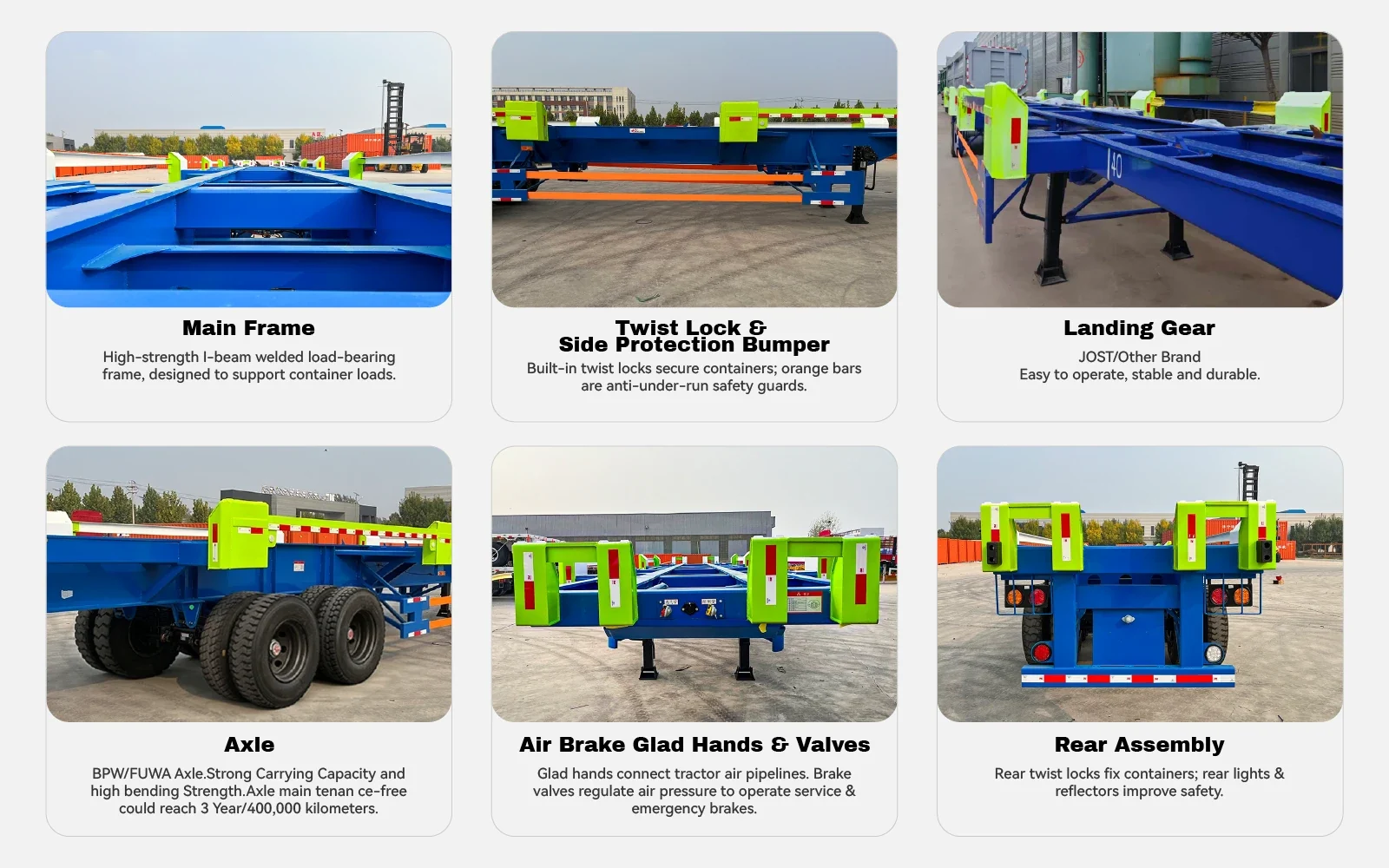

Twist lock seats, landing gear brackets and suspension hangers are reinforced for high-frequency impacts, and the whole frame gets electrophoresis painting, so resistance and painting effect can last for over 10 years in salty port air.
Applications
- Container transport: 1×40ft, 2×20ft combinations.
- Port and terminal transfer: high-frequency short hauls.
- Shipping lines and leasing: CKD/SKD assembly cooperation available.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Terminal / port high-frequency container shuttle |
| Loading Capacity | 30 – 80 Tons |
| Dimension (L×W×H) | 12400 × 2480 × 1580 mm |
| Type | Terminal container chassis |
| Painting | Electrophoresis Painting |
| MAIN BEAM & CHASSIS | |
| Main Beam Material | Q345 / T700 |
| Main Beam Height | 500 mm |
| Upper / Middle / Lower Plate | 14 mm / 6 mm / 16 mm |
| Cross Ribs | 42 tough ribs design |
| AXLE & SUSPENSION | |
| Axle | 3 × 13T heavy duty |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Leaf Spring | 90mm × 13mm × 10 / 90mm × 16mm × 10 |
| WHEEL & TIRE | |
| Tire | 12R22.5 (12/16 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5, Steel / Aluminum |
| ACCESSORIES | |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Twist Lock | 12 sets |
| Warranty | 1 year on main parts |

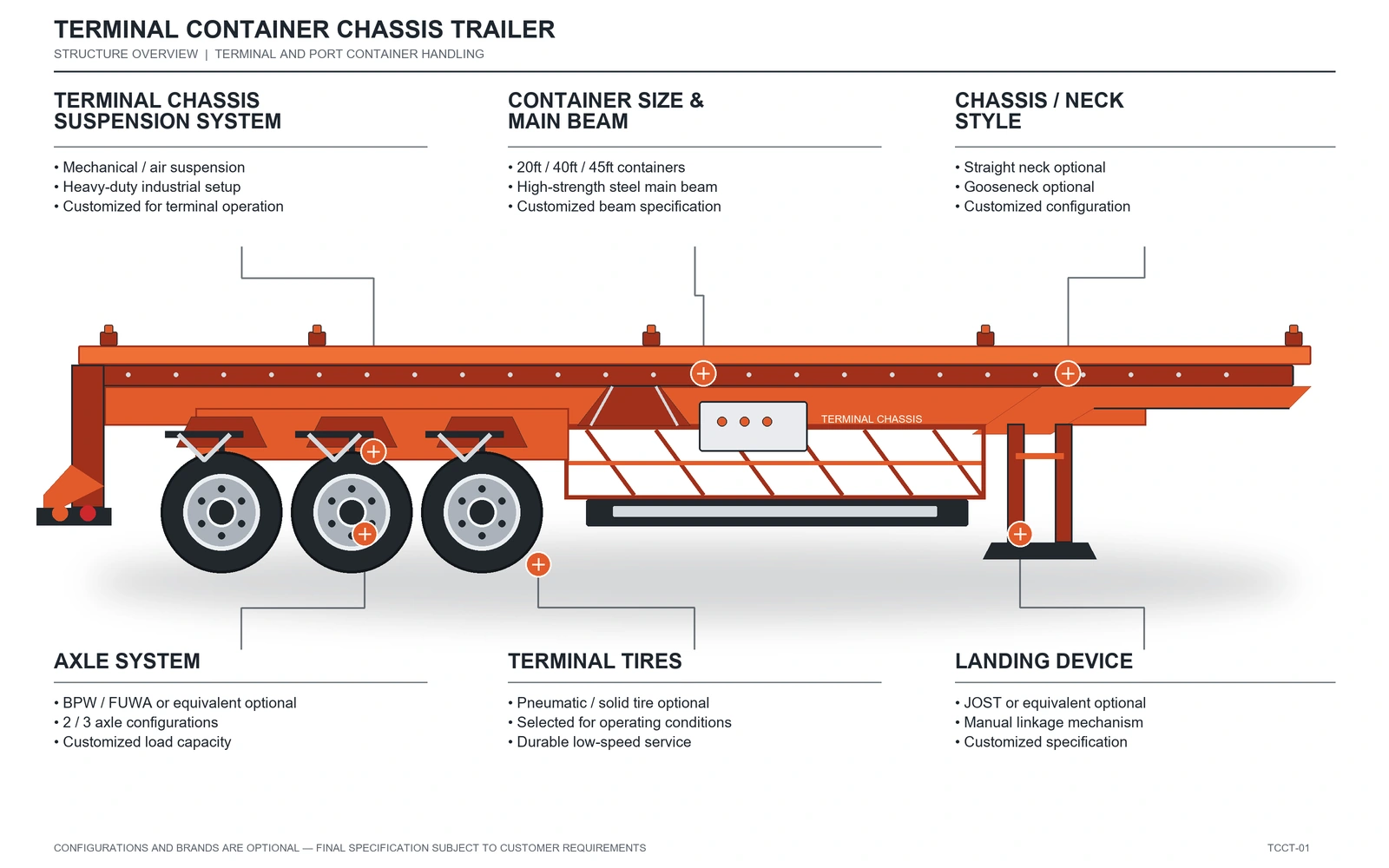

Dimensions
Features & Benefits
- 42 tough ribs design ensures safety and carrying capacity.
- Anti-tire-abrasion suspension prevents tire offset after loading – a common skeleton trailer pain point.
- Lighter than flatbed: skeletal structure saves 800-1,200 kg tare weight vs flatbed, one more container of payload in gross-weight-limited markets.
- Electrophoresis painting – corrosion resistance for over 10 years, critical for coastal port duty.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | 20ft | 40ft | 45ft | Terminal (This Page) |
|---|---|---|---|---|
| Container Loading | 20ft | 1×40ft / 2×20ft | 1×45ft / 1×40ft / 2×20ft | 20/40/45ft |
| Loading Capacity | 20 – 50 T | 30 – 80 T | 30 – 80 T | 30 – 80 T |
| Axles | 2 / 3 | 3 / 4 | 3 / 4 | 3 |
| Main Beam Plates | 12 / 6 / 12 mm | 14 / 6 / 16 mm | 10 / 5 / 10 mm | 14 / 6 / 16 mm |
| Beam Height | 500 mm | 500 mm | 420 mm | 500 mm |
| Twist Lock | 4 sets | 12 sets | 12 sets | 12 sets |
Inquire 20ft » Inquire 40ft » Inquire 45ft » Inquire Terminal (This Page) »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping

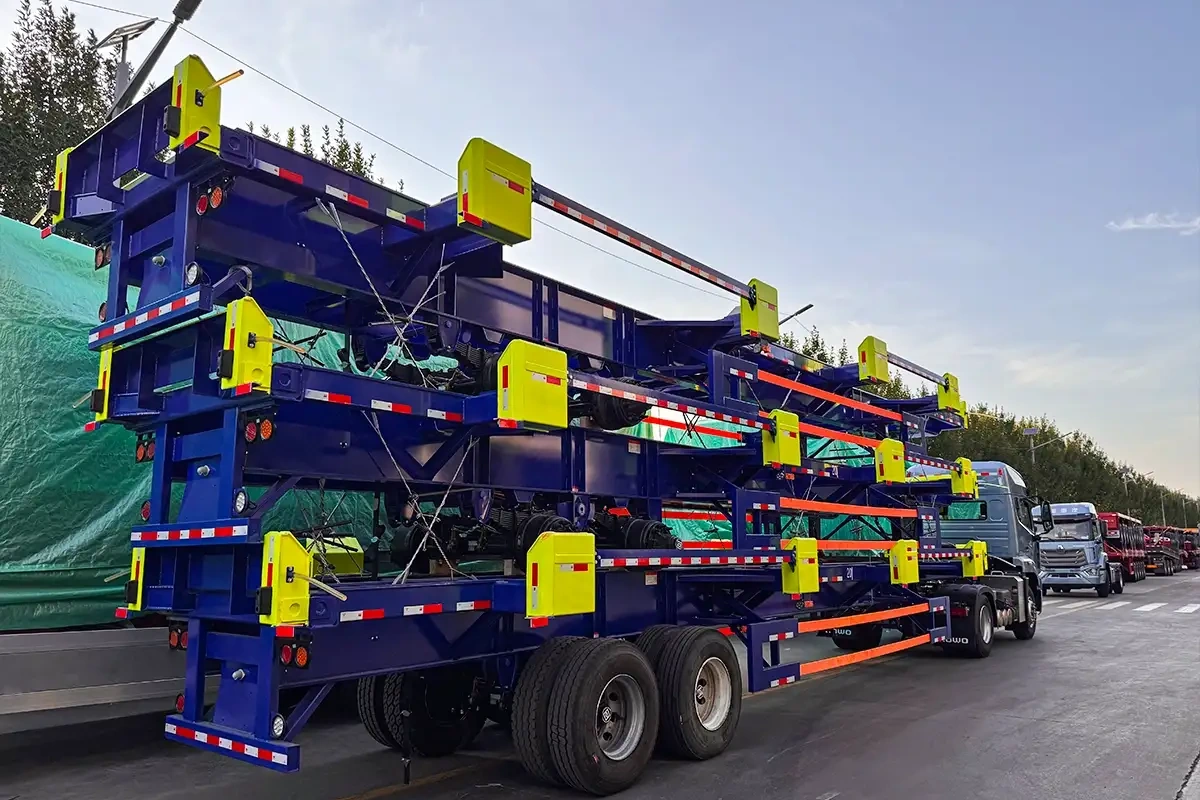

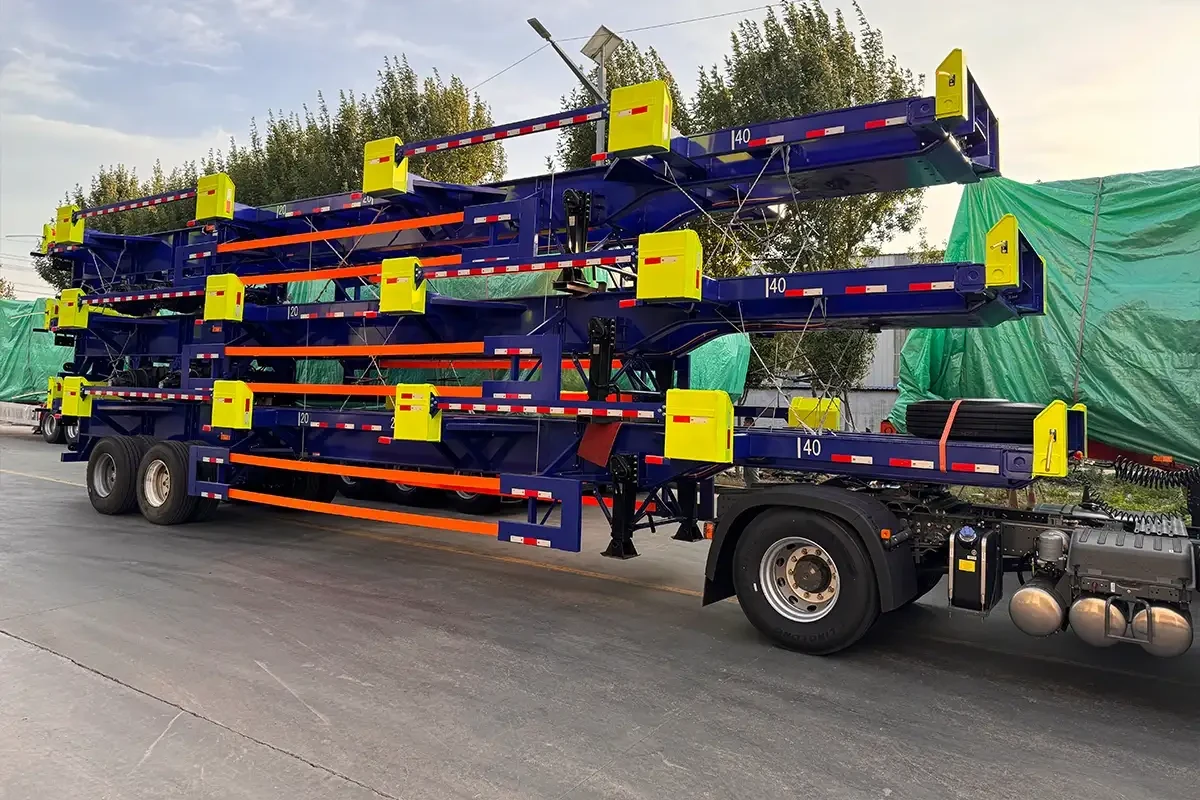

Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
20ft, 40ft and 45ft containers. Twist lock configuration (4 or 12 sets) is selected according to the container combination you transport.
Gooseneck type has a lower traction point for better stability; tandem (flat) type offers a simpler structure and lighter tare weight.
Yes. Loading capacity ranges from 20 to 80 tons depending on axle configuration (2/3/4 axles).
Yes. OEM, CKD and SKD cooperation are all available for skeleton semi trailers.
