3 Axle Fuel Tanker Semi Trailer
42-45 CBM carbon steel | 1-9 compartments | 100% X-Ray weld inspection
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available

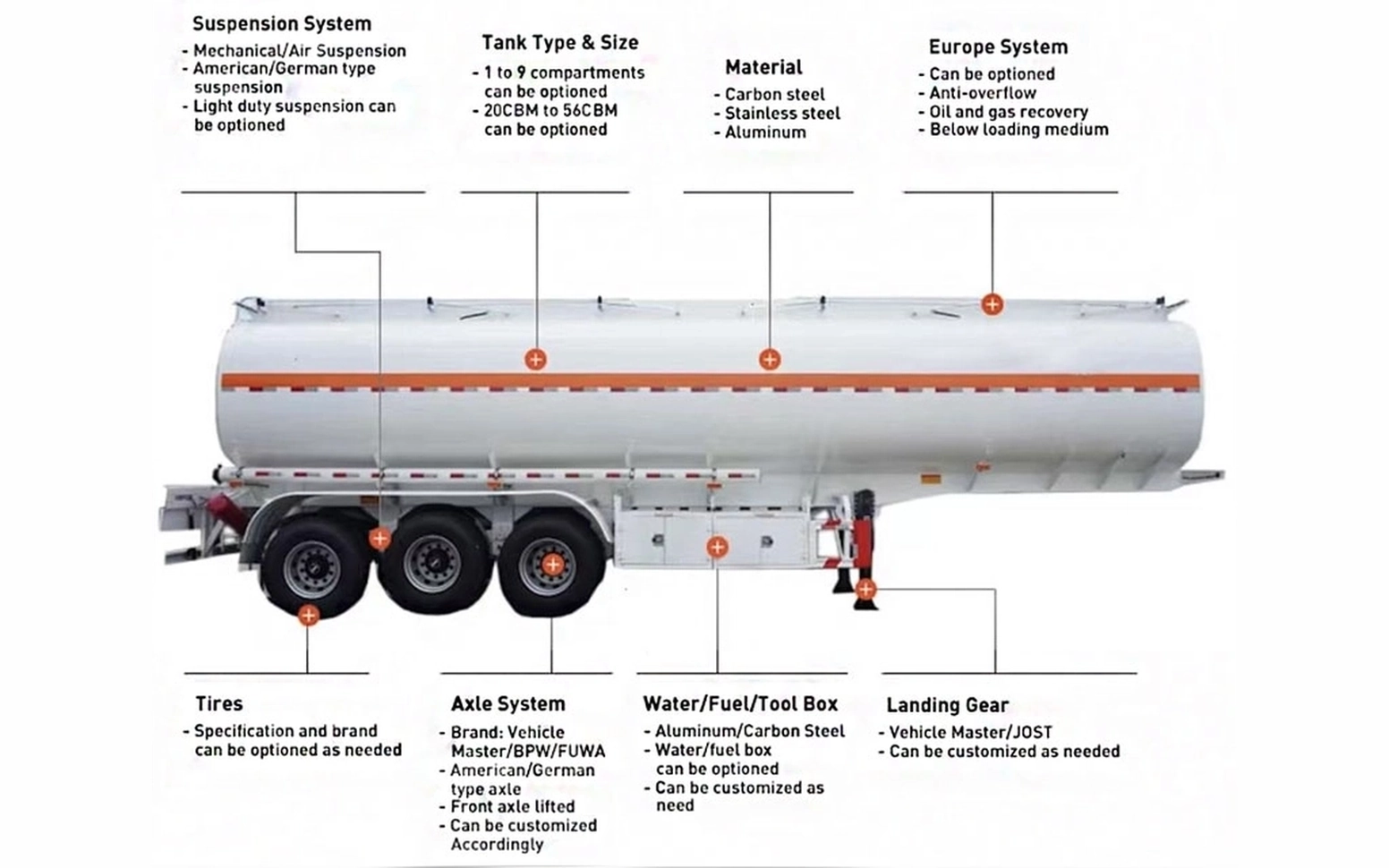

Configurations
Product Introduction
This 3 axle fuel tanker semi trailer is built for fuel, oil and gasoline distribution. The tank is welded by an advanced TIG welding robot with a 100% passing rate under X-Ray inspection – every weld seam on every tank is examined before delivery.
The European standard loading and unloading system is safe and environmentally friendly. Tank sections follow the international standard small arc for uniform strength; the gooseneck structure keeps the center of gravity low for stability.
Applications
- Fuel / oil / gasoline distribution – petrol stations and depots.
- Water transport – potable and industrial water.
- Chemical liquids – with stainless steel or lined tank.
- Milk and food-grade liquids – stainless steel food-grade configuration.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Fuel / oil / liquid transportation |
| Volume of Tank | 42 – 45 CBM, customized |
| Compartment | 1 to 9 |
| Dimension (L×W×H) | 13000 × 2500 × 3800 mm |
| TANK STRUCTURE | |
| Tank Material | Carbon Steel / Aluminum / Stainless Steel |
| Tank Thickness | 5 mm |
| Dish End Thickness | 6 mm |
| Buffle Thickness | 4 mm |
| Tank Shape | D Style / Round Style |
| Thermal / Anti-Explosion | Available |
| AXLE & SUSPENSION | |
| Axle | 3 Axles × 13/16 Ton |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical or Air Suspension |
| Leaf Spring | 90mm*13mm*10 / 90mm*16mm*10 |
| Lifted Axle | Available |
| WHEEL & TIRE | |
| Tire | 12R22.5 / 11.00R20 (12 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5 / 8.0, Steel / Aluminum |
| ACCESSORIES & SAFETY | |
| Manhole | 2 pcs, aluminum, anti-explosion (per compartment example) |
| Discharge Valve | 2 × 3 inch |
| Bottom Valve | 4 inch aluminum |
| Discharge Pipe | 3 inch rubber hose, 6 m each |
| Hose Carrier | 2 pcs, carbon steel / aluminum |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Tool Box | Steel or Aluminum |
| Extinguisher | 2 sets |
| Vehicle Examination | X-Ray room examination |
Dimensions
Features & Benefits
- 100% X-Ray weld inspection – every seam verified, essential for dangerous goods compliance.
- TIG welding robot – uniform, dense weld seams free of pores and slag inclusions.
- Anti-slip ladders and roof walkways – safe top operation in any weather.
- Tank top roll protection and high-strength rear protective guard.
- Expansion-structure wave-proof head board with high strength.
- 1 year warranty on main parts of semi trailer.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | Carbon Steel Fuel (This Page) | Aluminum Fuel | Stainless Steel | Water | Bitumen | 55000L | Chemical |
|---|---|---|---|---|---|---|---|
| Volume | 42-45 CBM | 45 CBM | 40 CBM | 20-30 CBM | 30-40 CBM | 50-55 CBM | 30-50 CBM |
| Tank Material | Carbon steel | Aluminum | Stainless 304 | Carbon steel | Carbon steel + heating | Carbon steel | Stainless / lined |
| Tare Weight | Standard | -1.5~2 T lighter | Standard | Standard | Standard | Standard | Standard |
| Suitable Cargo | Fuel / oil | Fuel / light chemical | Chemical / food-grade | Water | Bitumen / asphalt | Fuel (large capacity) | Corrosive chemicals |
| Compartment | 1 – 9 | 1 – 9 | 1 – 6 | 1 – 3 | 1 – 2 | 4 – 6 | 1 – 6 |
Inquire Carbon Steel Fuel (This Page) » Inquire Aluminum Fuel » Inquire Stainless Steel » Inquire Water » Inquire Bitumen » Inquire 55000L » Inquire Chemical »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping
Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Yes. Anti-explosion manholes, bottom valves and grounding devices are standard. The tank passes X-Ray inspection and pressure testing; ADR-compliant configurations are available for regulated markets.
Match your fuel grades: one compartment per grade. 3-6 compartments suit station supply; single compartment suits bulk transfer.
European standard bottom loading/unloading with 4-inch aluminum bottom valves, or top discharge via 2×3-inch valves with 6 m rubber hoses.
Aluminum saves 1.5-2 tons tare weight (more payload where gross weight is limited) and lasts longer, at 30-40% higher price. Carbon steel is the economical mainstream choice.
15-30 days – tank welding and inspection take longer than dry cargo trailers.
