Aluminum Fuel Tanker Trailer
1.5 – 2 tons lighter tare weight | 45 CBM aluminum alloy tank
Volume:45 CBM (45,000 L)
Tank Material:Aluminum alloy 5083
Tare Weight:1.5 – 2 T lighter than carbon steel
Axle:3 x 13T
Compartment:1 – 9 optional
Price:Factory direct price, varies by configuration. Quote within 24 hours.
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Carbon Steel 45CBM
Aluminum
Stainless Steel
Water
Bitumen
60000L
Chemical
Carbon Steel 45CBM
Aluminum
Stainless Steel
Water
Bitumen
60000L
Chemical
Product Introduction
The aluminum fuel tanker trailer cuts tare weight by 1.5 – 2 tons versus a carbon steel tank. Every trip carries more payload, and aluminum never rusts – the tank keeps its resale value for years.
The shell is 5083 aluminum alloy, TIG welded and X-ray tested like our steel tanks. The higher purchase price typically pays back in 1 – 2 years through extra payload and fuel savings.
Applications
- Fuel / oil / gasoline distribution – petrol stations and depots.
- Water transport – potable and industrial water.
- Chemical liquids – with stainless steel or lined tank.
- Milk and food-grade liquids – stainless steel food-grade configuration.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Fuel / diesel transport (lightweight fleets) |
| Volume of Tank | 45 CBM (45,000 L) |
| Compartment | 1 – 9 optional |
| Dimension (L×W×H) | 13000 × 2500 × 3800 mm |
| TANK STRUCTURE | |
| Tank Material | Aluminum alloy 5083 |
| Tank Thickness | 5 mm |
| Dish End Thickness | 6 mm |
| Buffle Thickness | 4 mm |
| Tank Shape | D Style / Round Style |
| Thermal / Anti-Explosion | Available |
| AXLE & SUSPENSION | |
| Axle | 3 × 13T |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical or Air Suspension |
| Leaf Spring | 90mm*13mm*10 / 90mm*16mm*10 |
| Lifted Axle | Available |
| WHEEL & TIRE | |
| Tire | 12R22.5 / 11.00R20 (12 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5 / 8.0, Steel / Aluminum |
| ACCESSORIES & SAFETY | |
| Manhole | 2 pcs, aluminum, anti-explosion (per compartment example) |
| Discharge Valve | 2 × 3 inch |
| Bottom Valve | 4 inch aluminum |
| Discharge Pipe | 3 inch rubber hose, 6 m each |
| Hose Carrier | 2 pcs, carbon steel / aluminum |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Tool Box | Steel or Aluminum |
| Extinguisher | 2 sets |
| Vehicle Examination | X-Ray room examination |
Dimensions
Features & Benefits
- 100% X-Ray weld inspection – every seam verified, essential for dangerous goods compliance.
- TIG welding robot – uniform, dense weld seams free of pores and slag inclusions.
- Anti-slip ladders and roof walkways – safe top operation in any weather.
- Tank top roll protection and high-strength rear protective guard.
- Expansion-structure wave-proof head board with high strength.
- 1 year warranty on main parts of semi trailer.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | Carbon Steel Fuel | Aluminum Fuel (This Page) | Stainless Steel | Water | Bitumen | 60000L | Chemical |
|---|---|---|---|---|---|---|---|
| Volume | 42-45 CBM | 45 CBM | 40 CBM | 20-30 CBM | 30-40 CBM | 50-55 CBM | 30-50 CBM |
| Tank Material | Carbon steel | Aluminum | Stainless 304 | Carbon steel | Carbon steel + heating | Carbon steel | Stainless / lined |
| Tare Weight | Standard | -1.5~2 T lighter | Standard | Standard | Standard | Standard | Standard |
| Suitable Cargo | Fuel / oil | Fuel / light chemical | Chemical / food-grade | Water | Bitumen / asphalt | Fuel (large capacity) | Corrosive chemicals |
| Compartment | 1 – 9 | 1 – 9 | 1 – 6 | 1 – 3 | 1 – 2 | 4 – 6 | 1 – 6 |
Inquire Carbon Steel Fuel » Inquire Aluminum Fuel (This Page) » Inquire Stainless Steel » Inquire Water » Inquire Bitumen » Inquire 60000L » Inquire Chemical »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping

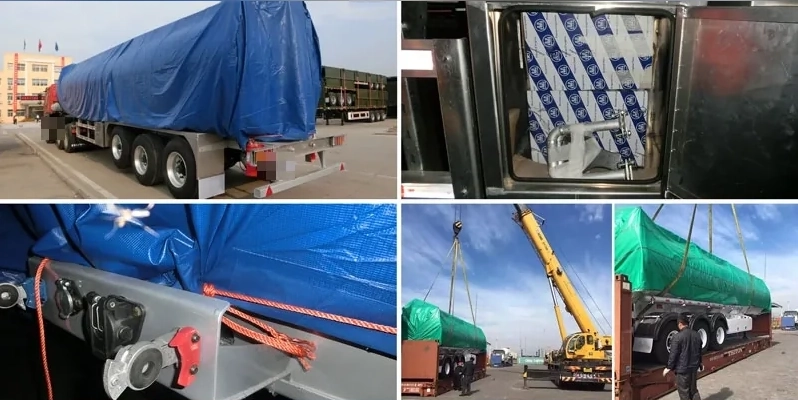

Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Carbon steel is economical for fuel and water; aluminum is lighter for higher payload; stainless steel suits chemicals and food-grade liquids.
1 to 9 compartments, so one trip can carry different liquids.
Yes. Anti-explosion manholes, bottom valves and European standard loading/unloading systems are applied. Every tank passes 100% X-ray weld inspection.
20 to 55 CBM, customized according to axle configuration and road regulations in your country.
