Stainless Steel Tanker Trailer
Stainless 304 tank, food-grade option | for chemical and edible liquids
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available

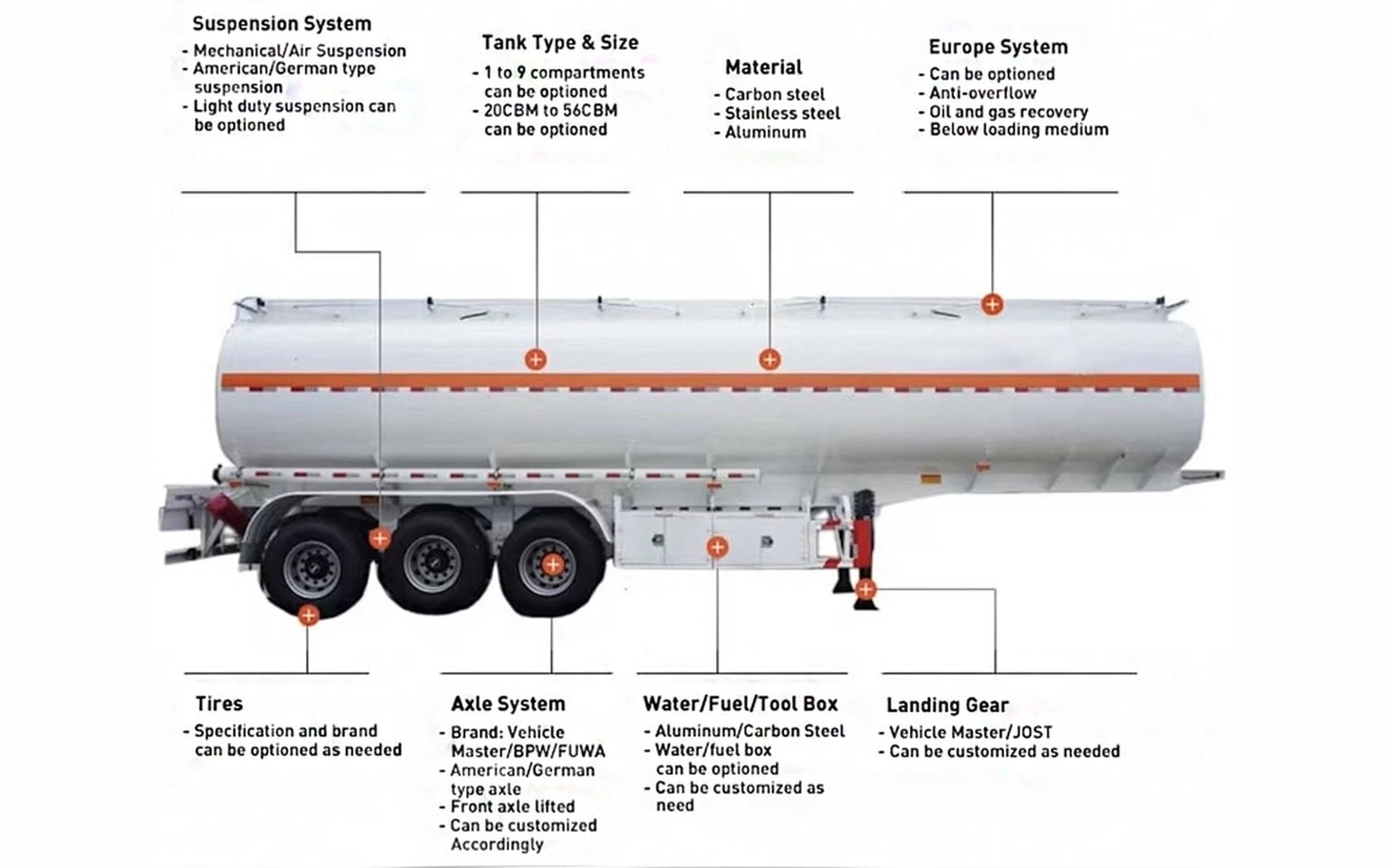

Configurations
Product Introduction
The stainless steel tanker trailer uses a 304 stainless tank for corrosive chemicals and food-grade liquids – milk, edible oil, drinking water, alcohol and weak acids all stay clean and uncontaminated.
Inside surfaces can be mirror-polished for food-grade service with CIP cleaning.
Applications
- Fuel / oil / gasoline distribution – petrol stations and depots.
- Water transport – potable and industrial water.
- Chemical liquids – with stainless steel or lined tank.
- Milk and food-grade liquids – stainless steel food-grade configuration.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Chemical & food-grade liquid transport |
| Volume of Tank | 40 CBM (20 – 55 CBM customizable) |
| Compartment | 1 – 6 optional |
| Dimension (L×W×H) | 13000 × 2500 × 3800 mm |
| TANK STRUCTURE | |
| Tank Material | Stainless steel 304 (food-grade optional) |
| Tank Thickness | 5 mm |
| Dish End Thickness | 6 mm |
| Buffle Thickness | 4 mm |
| Tank Shape | D Style / Round Style |
| Thermal / Anti-Explosion | Available |
| AXLE & SUSPENSION | |
| Axle | 3 × 13T |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical or Air Suspension |
| Leaf Spring | 90mm*13mm*10 / 90mm*16mm*10 |
| Lifted Axle | Available |
| WHEEL & TIRE | |
| Tire | 12R22.5 / 11.00R20 (12 pcs) |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5 / 8.0, Steel / Aluminum |

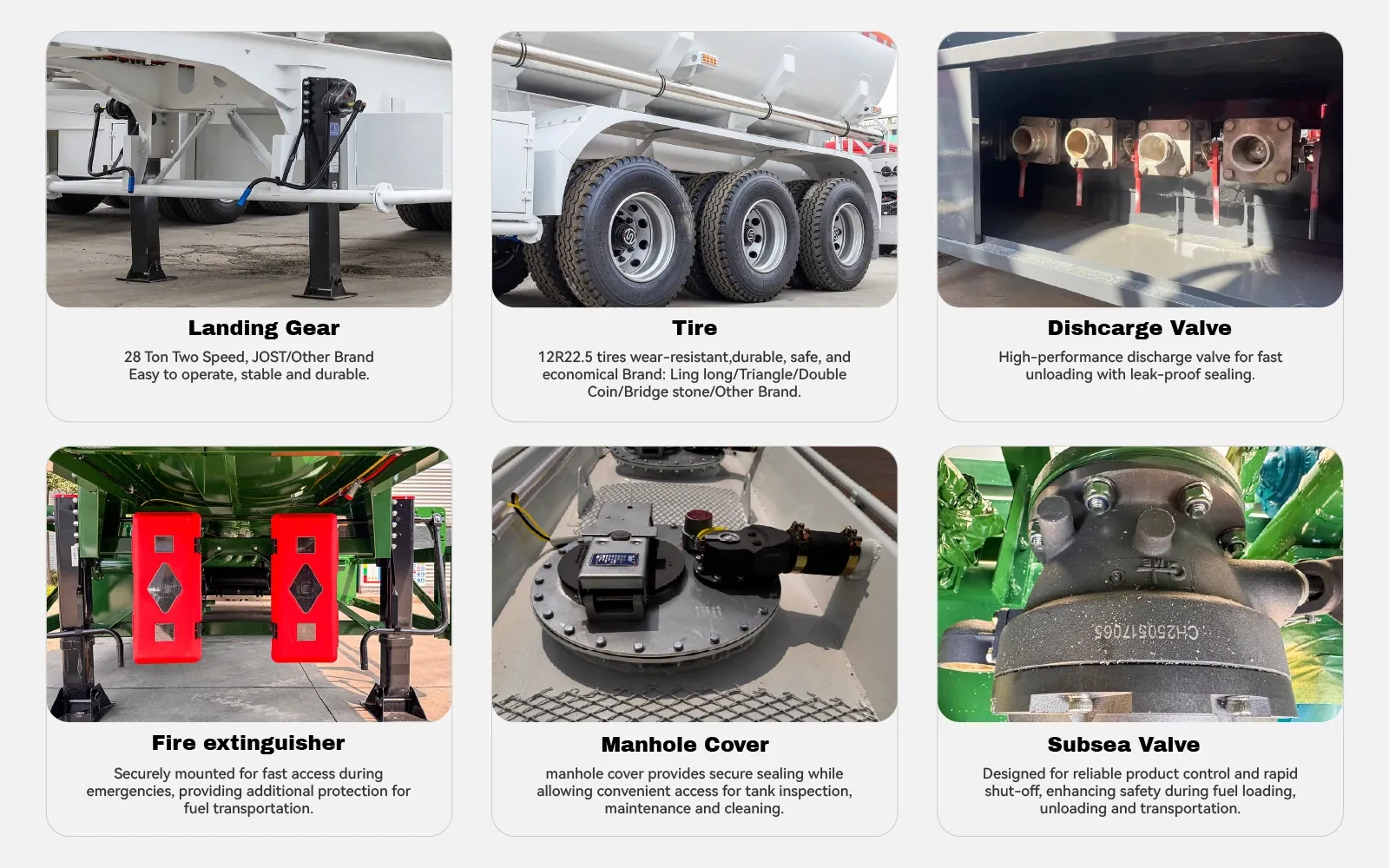

| ACCESSORIES & SAFETY | |
| Manhole | 2 pcs, aluminum, anti-explosion (per compartment example) |
| Discharge Valve | 2 × 3 inch |
| Bottom Valve | 4 inch aluminum |
| Discharge Pipe | 3 inch rubber hose, 6 m each |
| Hose Carrier | 2 pcs, carbon steel / aluminum |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Tool Box | Steel or Aluminum |
| Extinguisher | 2 sets |
| Vehicle Examination | X-Ray room examination |
Dimensions
Features & Benefits
- 100% X-Ray weld inspection – every seam verified, essential for dangerous goods compliance.
- TIG welding robot – uniform, dense weld seams free of pores and slag inclusions.
- Anti-slip ladders and roof walkways – safe top operation in any weather.
- Tank top roll protection and high-strength rear protective guard.
- Expansion-structure wave-proof head board with high strength.
- 1 year warranty on main parts of semi trailer.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98‰.
- National level welding supervision – 30 minutes per process longer.
Model Comparison
| Item | Carbon Steel Fuel | Aluminum Fuel | Stainless Steel (This Page) | Water | Bitumen | 55000L | Chemical |
|---|---|---|---|---|---|---|---|
| Volume | 42-45 CBM | 45 CBM | 40 CBM | 20-30 CBM | 30-40 CBM | 50-55 CBM | 30-50 CBM |
| Tank Material | Carbon steel | Aluminum | Stainless 304 | Carbon steel | Carbon steel + heating | Carbon steel | Stainless / lined |
| Tare Weight | Standard | -1.5~2 T lighter | Standard | Standard | Standard | Standard | Standard |
| Suitable Cargo | Fuel / oil | Fuel / light chemical | Chemical / food-grade | Water | Bitumen / asphalt | Fuel (large capacity) | Corrosive chemicals |
| Compartment | 1 – 9 | 1 – 9 | 1 – 6 | 1 – 3 | 1 – 2 | 4 – 6 | 1 – 6 |
Inquire Carbon Steel Fuel » Inquire Aluminum Fuel » Inquire Stainless Steel (This Page) » Inquire Water » Inquire Bitumen » Inquire 55000L » Inquire Chemical »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
Shipping

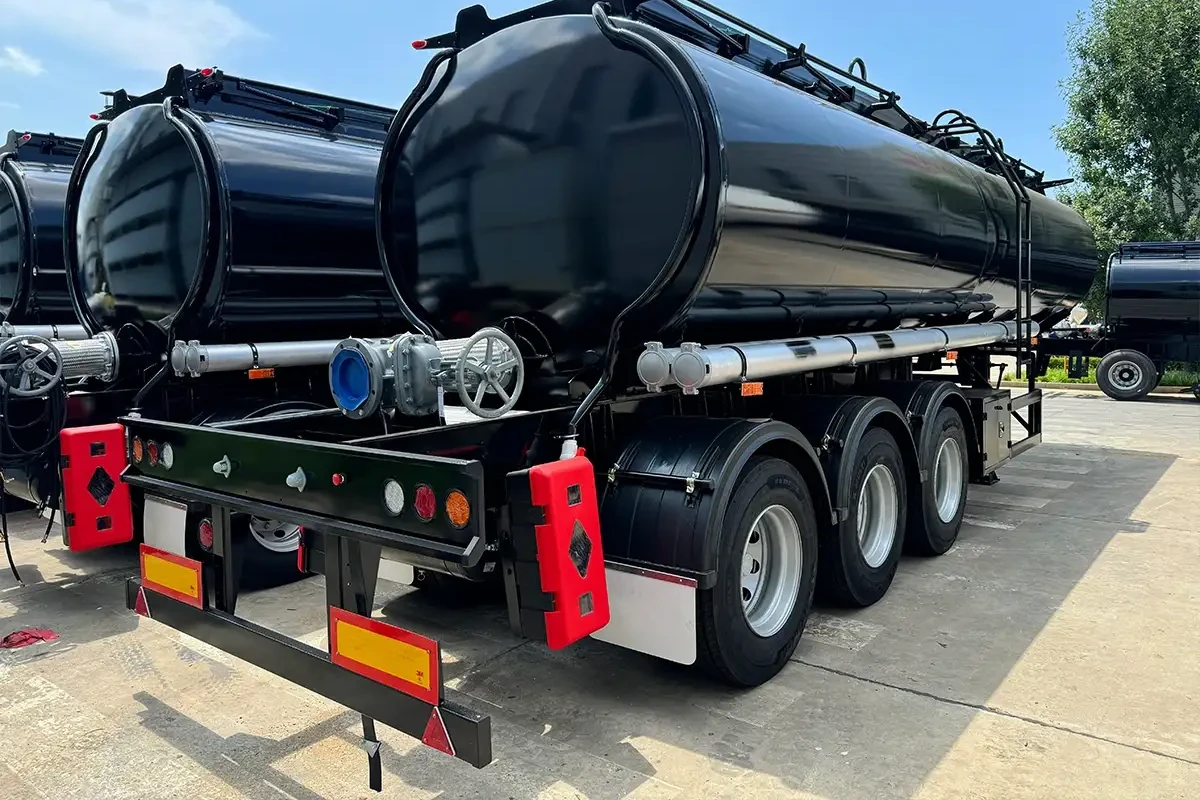

Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Carbon steel is economical for fuel and water; aluminum is lighter for higher payload; stainless steel suits chemicals and food-grade liquids.
1 to 9 compartments, so one trip can carry different liquids.
Yes. Anti-explosion manholes, bottom valves and European standard loading/unloading systems are applied. Every tank passes 100% X-ray weld inspection.
20 to 55 CBM, customized according to axle configuration and road regulations in your country.
