60000L Fuel Tanker Semi Trailer
Large capacity 50 – 60 CBM | gooseneck low-gravity tank design
MOQ: 1 unit | Delivery: 15-30 days | OEM / ODM / CKD / SKD available
Configurations
Product Introduction
The 60000L fuel tanker semi trailer maximizes payload per trip for fuel depots and mining supply: 50 – 60 CBM on 3 or 4 heavy duty axles, with a gooseneck tank profile that lowers the center of gravity for safer cornering.
Four to six compartments with European manholes and bottom valves let one trailer deliver several fuel grades at once. Note some countries limit tankers to 59 CBM – confirm your local rule and we design to it.
Applications
- Fuel / oil / gasoline distribution – petrol stations and depots.
- Water transport – potable and industrial water.
- Chemical liquids – with stainless steel or lined tank.
- Milk and food-grade liquids – stainless steel food-grade configuration.
Specifications
Below is VEHICLE MASTER’s standard specification. Please let us know if anything needs customization.
| Item | Specification |
|---|---|
| OVERALL | |
| Brand | Vehicle Master |
| Application | Large capacity fuel transport |
| Volume of Tank | 50 – 60 CBM (50,000 – 60,000 L) |
| Compartment | 4 – 6 |
| Dimension (L×W×H) | 13000 × 2500 × 3800 mm |
| TANK STRUCTURE | |
| Tank Material | Carbon Steel / Aluminum / Stainless Steel |
| Tank Thickness | 5 mm |
| Dish End Thickness | 6 mm |
| Buffle Thickness | 4 mm |
| Tank Shape | Gooseneck low-gravity design |
| Thermal / Anti-Explosion | Available |
| AXLE & SUSPENSION | |
| Axle | 3 / 4 × 16T |
| Axle Brand | Vehicle Master / FUWA / BPW |
| Suspension | Mechanical or Air Suspension |
| WHEEL & TIRE | |
| Tire | 12R22.5 × 12 / 16 |
| Tire Brand | Linglong / Triangle / Double-Coin / Bridgestone |
| Rim | 9.00×22.5 / 8.0, Steel / Aluminum |
| ACCESSORIES & SAFETY | |
| Manhole | 2 pcs, aluminum, anti-explosion (per compartment example) |
| Discharge Valve | 2 × 3 inch |
| Bottom Valve | 4 inch aluminum |
| Discharge Pipe | 3 inch rubber hose, 6 m each |
| Hose Carrier | 2 pcs, carbon steel / aluminum |
| King Pin | #50 (2″) / #90 (3.5″), JOST |
| Landing Gear | 28 Tons Two Speed, JOST |
| Extinguisher | 2 sets |
| Vehicle Examination | X-Ray room examination |
Dimensions
Features & Benefits
- 100% X-Ray weld inspection – every seam verified, essential for dangerous goods compliance.
- TIG welding robot – uniform, dense weld seams free of pores and slag inclusions.
- Anti-slip ladders and roof walkways – safe top operation in any weather.
- Tank top roll protection and high-strength rear protective guard.
- Expansion-structure wave-proof head board with high strength.
Model Comparison
| Item | Carbon Steel Fuel | Aluminum Fuel | Stainless Steel | Water | Bitumen | 60000L (This Page) | Chemical |
|---|---|---|---|---|---|---|---|
| Volume | 42-45 CBM | 45 CBM | 40 CBM | 20-30 CBM | 30-40 CBM | 50-60 CBM | 30-50 CBM |
| Tank Material | Carbon steel | Aluminum | Stainless 304 | Carbon steel | Carbon steel + heating | Carbon steel | Stainless / lined |
| Tare Weight | Standard | -1.5~2 T lighter | Standard | Standard | Standard | Standard | Standard |
| Suitable Cargo | Fuel / oil | Fuel / light chemical | Chemical / food-grade | Water | Bitumen / asphalt | Fuel (large capacity) | Corrosive chemicals |
| Compartment | 1 – 9 | 1 – 9 | 1 – 6 | 1 – 3 | 1 – 2 | 4 – 6 | 1 – 6 |
Inquire Carbon Steel Fuel » Inquire Aluminum Fuel » Inquire Stainless Steel » Inquire Water » Inquire Bitumen » Inquire 60000L (This Page) » Inquire Chemical »
* All configurations are customizable. OEM / ODM / CKD / SKD cooperation available.
More About This Trailer
50000L Fuel Tanker
The 50000L fuel tanker version runs on 3 x 16T axles and stays under most axle-load limits fully loaded; it is the best-selling large capacity spec for African fuel logistics.
60000L Fuel Tanker
Our 60000L fuel tanker uses 4 axles and a reinforced gooseneck. Every tank is hydro-tested and X-ray inspected before paint – test reports ship with the trailer.
Large Capacity Tanker Trailer
A large capacity tanker trailer pays for itself on long fixed routes: fewer trips, fewer drivers, lower cost per liter delivered. We help you calculate whether 45, 50 or 60 CBM is optimal for your route.
Manufacturing & Quality
- Automatic submerged-arc welding on vertical beams.
- Shot blasting on the integral frame removes welding stress.
- FEA (Finite Element Analysis) on vehicle structure.
- High strength full thickness steel, titanium content 0.98.
- National level welding supervision – 30 minutes per process longer.
Shipping

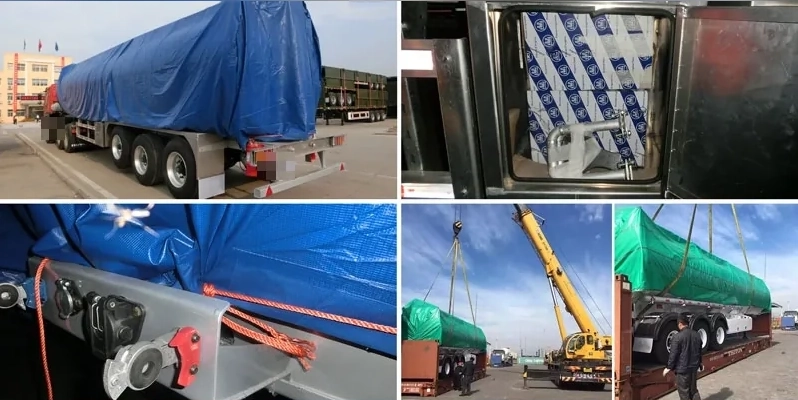

Ro-ro ship, bulk cargo vessel, or flat rack container depending on specification and destination. Major components are wrapped with shock-proof material and secured with steel frames.
FAQ
Carbon steel is economical for fuel and water; aluminum is lighter for higher payload; stainless steel suits chemicals and food-grade liquids.
1 to 9 compartments, so one trip can carry different liquids.
Yes. Anti-explosion manholes, bottom valves and European standard loading/unloading systems are applied. Every tank passes 100% X-ray weld inspection.
20 to 55 CBM, customized according to axle configuration and road regulations in your country.
